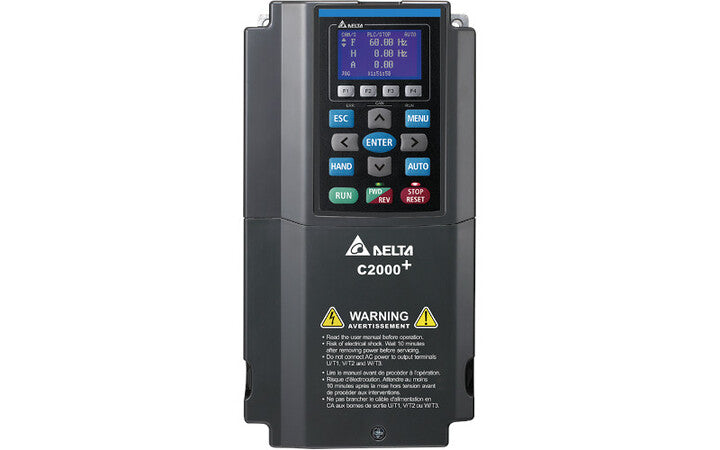

Delta VFD3150C63B-00 - C2000 Plus Inverter Drive, Power Output 315 kW, Three-phase 690V

Name: Delta VFD3150C63B-00 - C2000 Plus Inverter Drive, Power Output 315 kW, Three-phase 690V
Brand: Delta
SKU: VFD3150C63B-00
Price: 63293.00 AED
Availability: InStock

SKUVFD3150C63B-00BrandDelta

AED 63,293.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The VFD3150C63B-00 is an industrial-grade Inverter Drive manufactured by Delta, falling under our premier Automation & Control Gear category. Specifically engineered for precise Electric Motor applications, this drive is part of the reliable C2000 Plus series. It is rated for Power Output 315 kW and accepts a Three-phase 690V input. Designed for efficiency and durability, it ensures optimal motor management, reduced energy consumption, and increased mechanical lifespan for your industrial automated systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: Delta
Series: C2000 Plus
Power Output (HP): 420
Power Output (kW): 315
Input Phase: Three-phase
Input Voltage: 690V
Rated Output Current (A): 220
Enclosure Rating: IP20 / IP00 (open terminal area)
Frame Size: G
Cooling Method: Forced air cooling
Certifications: CE, UL, cUL, RCM, RoHS

Application: High Performance Vector Control AC Motor Drive
Weight (kg): 135
Carrier Frequency (kHz): 2–15 (adjustable)
Control Method: V/F / SVC / FOC Sensorless / FOC+PG (IM & PM motors)
Max Output Voltage: 3-phase, proportional to input voltage
Output Frequency Range (Hz): 0–599
Braking Transistor: Optional (external VFDB module)
Rated Output Capacity (kVA): 265.3
Overload Tolerance: 150% / 60 sec; 180% / 3 sec (HD) | 150% / 60 sec; 200% / 3 sec (SHD)
Dimensions W×H (mm): 500 × 1000
Rated Input Voltage / Frequency: 525–690V AC 50/60Hz
