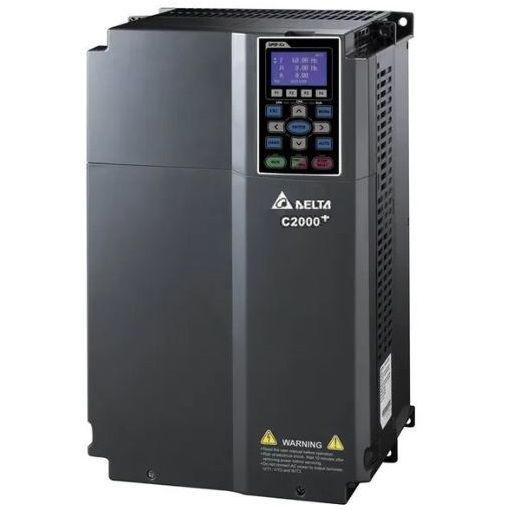

Delta VFD150C4EA-21 - C2000+ — Built-in EMC Filter Inverter Drive, Power Output 15 kW, Three-phase 460V

Name: Delta VFD150C4EA-21 - C2000+ — Built-in EMC Filter Inverter Drive, Power Output 15 kW, Three-phase 460V
Brand: Delta
SKU: VFD150C4EA-21
Price: 4178.00 AED
Availability: InStock

SKUVFD150C4EA-21BrandDelta

AED 4,178.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The VFD150C4EA-21 is an industrial-grade Inverter Drive manufactured by Delta, falling under our premier Automation & Control Gear category. Specifically engineered for precise Electric Motor applications, this drive is part of the reliable C2000+ — Built-in EMC Filter series. It is rated for Power Output 15 kW and accepts a Three-phase 460V input. Designed for efficiency and durability, it ensures optimal motor management, reduced energy consumption, and increased mechanical lifespan for your industrial automated systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: Delta
Series: VFD-C2000+ — Built-in EMC Filter
Power Output (HP): 20
Power Output (kW): 15
Input Phase: Three-phase
Input Voltage: 460V
Rated Output Current (A): 32
Enclosure Rating: IP20 / NEMA 1
Frame Size: B
Cooling Method: Forced air-cooling (fan)
Certifications: CE, UL, cUL, RCM, KC

Application: High Performance Vector Control — Heavy Duty Industrial Drive
Weight (kg): 5.4
Carrier Frequency (kHz): 2–15 (adjustable)
Control Method: V/F, Sensorless Vector (IM/PM), FOC (IM/PM, with/without PG), Torque Control, SynRM Sensorless
Max Output Voltage: 3-phase proportional to input voltage
Output Frequency Range (Hz): 0.1–599
Braking Transistor: Built-in
Rated Output Capacity (kVA): 29.1
Overload Tolerance: 150%/60s, 180%/3s (Heavy Duty); 150%/60s, 200%/3s (Super Heavy Duty)
Dimensions W×H (mm): 190×320
Rated Input Voltage / Frequency: 380–480V AC 50/60Hz
