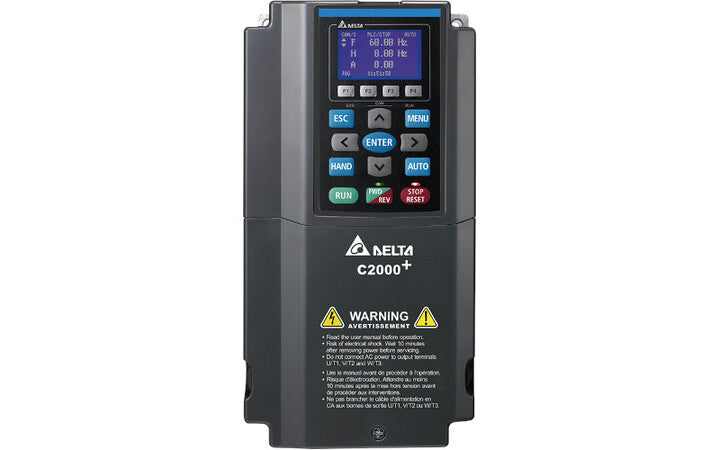

Delta VFD015C43A-21 - C2000 Plus Inverter Drive, Power Output 1.5 kW, Three-phase 460V

Name: Delta VFD015C43A-21 - C2000 Plus Inverter Drive, Power Output 1.5 kW, Three-phase 460V
Brand: Delta
SKU: VFD015C43A-21
Price: 1536.00 AED
Availability: InStock

SKUVFD015C43A-21BrandDelta

AED 1,536.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The VFD015C43A-21 is an industrial-grade Inverter Drive manufactured by Delta, falling under our premier Automation & Control Gear category. Specifically engineered for precise Electric Motor applications, this drive is part of the reliable C2000 Plus series. It is rated for Power Output 1.5 kW and accepts a Three-phase 460V input. Designed for efficiency and durability, it ensures optimal motor management, reduced energy consumption, and increased mechanical lifespan for your industrial automated systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: Delta
Series: C2000 Plus
Power Output (HP): 2
Power Output (kW): 1.5
Input Phase: Three-phase
Input Voltage: 460V
Rated Output Current (A): 4
Enclosure Rating: IP20 / UL Type 1 / NEMA 1
Frame Size: A
Cooling Method: Natural convection
Certifications: CE, UL, cUL, RCM, RoHS

Application: High Performance Vector Control AC Motor Drive
Weight (kg): 2.6
Carrier Frequency (kHz): 2–15 (adjustable)
Control Method: V/F / SVC / FOC Sensorless / FOC+PG (IM & PM motors)
Max Output Voltage: 3-phase, proportional to input voltage
Output Frequency Range (Hz): 0–599
Braking Transistor: Built-in
Rated Output Capacity (kVA): 4.9
Overload Tolerance: 150% / 60 sec; 180% / 3 sec (HD) | 150% / 60 sec; 200% / 3 sec (SHD)
Dimensions W×H (mm): 130 × 250
Rated Input Voltage / Frequency: 380–480V AC 50/60Hz
