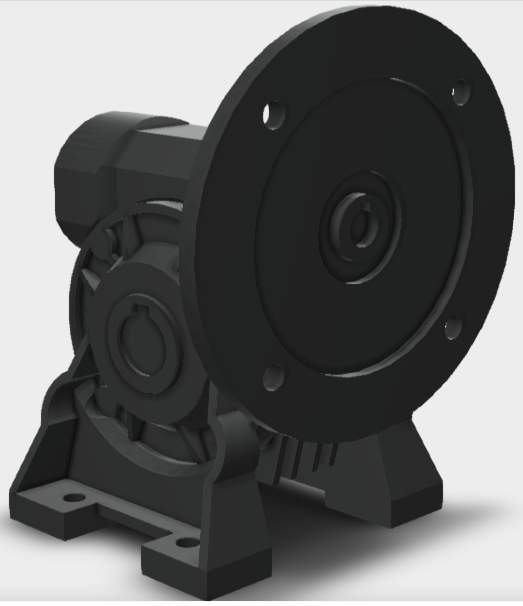

Bonfiglioli VF 44 A100 P63 B5 B3 RB - Worm Gearboxes, 100 Ratio (18 Mm Shaft)

Bonfiglioli VF 44 A100 P63 B5 B3 RB - Worm Gearboxes, 100 Ratio (18 Mm Shaft)

SKUVF 44 A100 P63 B5 B3 RBBrandBonfiglioli
AED 633.00
AED 633.00
Sale Sold out
Shipping calculated at checkout.

The VF 44 A100 P63 B5 B3 RB is a high-performance Worm Gearboxes manufactured by Bonfiglioli, engineered for robust power transmission in demanding industrial applications. Delivering a precise 100 gear ratio and a maximum output torque of 55 Nm, this Worm Reduction configuration ensures efficient mechanical operation and superior load management. Designed for seamless integration, it features a 18 Mm shaft diameter, supports a maximum speed of 14 RPM, and is optimized for a 0.25 Hp/ 0.18Kw power rating, providing continuous, reliable performance for your automated systems.

View full details
ParameterValue
Brand
Bonfiglioli
Gear Ratio
100
Gearbox Type
Worm Reduction
Maximum Output Torque
55 Nm
Shaft Diameter
18 Mm
Power Rating
0.25 Hp/ 0.18Kw
Maximum Speed
14 RPM
Input Speed
1400
ParameterValue
Housing Type
Aluminium
Motor Coupling
Direct
Lubrication
Oil Filled
Mounting Version
Foot Mount
Input Shaft Diameter
11 Mm
Service Factor
1
Warranty
12 Months
