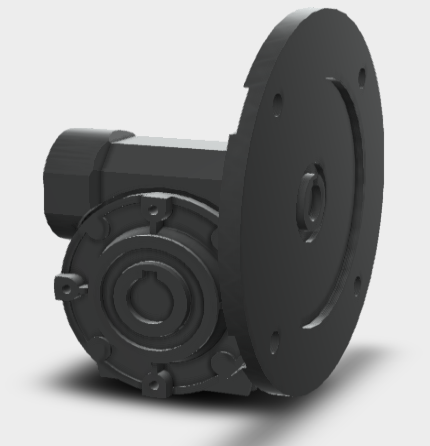

Bonfiglioli VF 30 P60 P56 B14 B3 - Worm Gearboxes, 60 Ratio (14 Mm Shaft)

Bonfiglioli VF 30 P60 P56 B14 B3 - Worm Gearboxes, 60 Ratio (14 Mm Shaft)

SKUVF 30 P60 P56 B14 B3BrandBonfiglioli
AED 463.00
AED 463.00
Sale Sold out
Shipping calculated at checkout.

The VF 30 P60 P56 B14 B3 is a high-performance Worm Gearboxes manufactured by Bonfiglioli, engineered for robust power transmission in demanding industrial applications. Delivering a precise 60 gear ratio and a maximum output torque of 24 Nm, this Worm Reduction configuration ensures efficient mechanical operation and superior load management. Designed for seamless integration, it features a 14 Mm shaft diameter, supports a maximum speed of 23.33 RPM, and is optimized for a 0.12 Hp/ 0.09Kw power rating, providing continuous, reliable performance for your automated systems.

View full details
ParameterValue
Brand
Bonfiglioli
Gear Ratio
60
Gearbox Type
Worm Reduction
Maximum Output Torque
24 Nm
Shaft Diameter
14 Mm
Power Rating
0.12 Hp/ 0.09Kw
Maximum Speed
23.33 RPM
Input Speed
1400
Housing Type
Aluminium
ParameterValue
Motor Frame Type
Iec Std Frame 56 B5
Motor Coupling
Direct
Lubrication
Oil Filled
Mounting Version
Shaft Mount
Input Shaft Diameter
9 Mm
Output Shaft Type (Alt)
Hollow Output With Keyway
Efficiency
51
Service Factor
1
Warranty
12 Months
