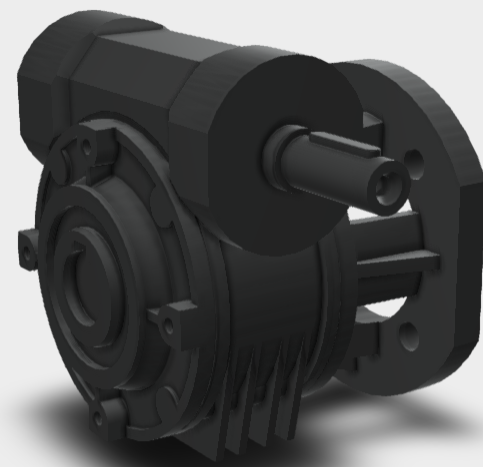

Bonfiglioli VF 30 F60 HS B7 - Worm Gearboxes, 60 Ratio (14 Mm Shaft)

Bonfiglioli VF 30 F60 HS B7 - Worm Gearboxes, 60 Ratio (14 Mm Shaft)

SKUVF 30 F60 HS B7BrandBonfiglioli
AED 378.00
AED 378.00
Sale Sold out
Shipping calculated at checkout.

The VF 30 F60 HS B7 is a high-performance Worm Gearboxes manufactured by Bonfiglioli, engineered for robust power transmission in demanding industrial applications. Delivering a precise 60 gear ratio and a maximum output torque of 24 Nm, this Worm Reduction configuration ensures efficient mechanical operation and superior load management. Designed for seamless integration, it features a 14 Mm shaft diameter, supports a maximum speed of 23 RPM, and is optimized for a 0.12 Hp/ 0.09Kw power rating, providing continuous, reliable performance for your automated systems.

View full details
ParameterValue
Brand
Bonfiglioli
Gear Ratio
60
Gearbox Type
Worm Reduction
Maximum Output Torque
24 Nm
Shaft Diameter
14 Mm
Power Rating
0.12 Hp/ 0.09Kw
Maximum Speed
23 RPM
Input Speed
1400
ParameterValue
Housing Type
Aluminium
Motor Coupling
Via Chain Sprocket/Coupling/Belt Pulley
Lubrication
Oil Filled
Mounting Version
Flange
Input Shaft Diameter
9 Mm
Service Factor
1
Warranty
12 Months
