• Bonfiglioli - VF 150 A100 P112 B5 B3
1 1

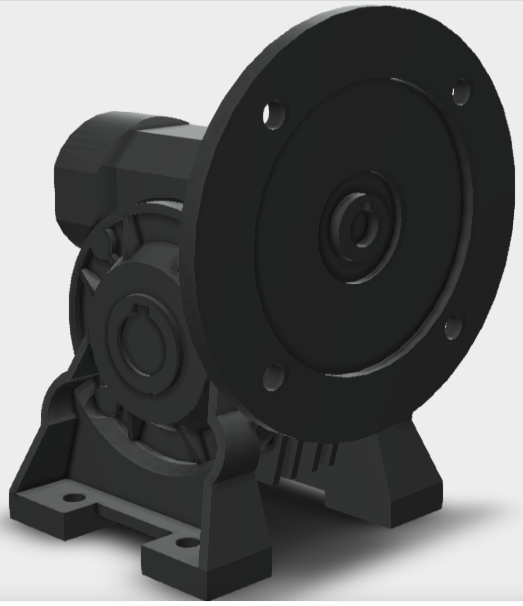

Bonfiglioli VF 150 A100 P112 B5 B3 - Worm Gearboxes, 100 Ratio (50 Mm Shaft)

Bonfiglioli VF 150 A100 P112 B5 B3 - Worm Gearboxes, 100 Ratio (50 Mm Shaft)

SKUVF 150 A100 P112 B5 B3BrandBonfiglioli
AED 5,859.00
AED 5,859.00
Sale Sold out
Shipping calculated at checkout.

The VF 150 A100 P112 B5 B3 is a high-performance Worm Gearboxes manufactured by Bonfiglioli, engineered for robust power transmission in demanding industrial applications. Delivering a precise 100 gear ratio and a maximum output torque of 2000 Nm, this Worm Reduction configuration ensures efficient mechanical operation and superior load management. Designed for seamless integration, it features a 50 Mm shaft diameter, supports a maximum speed of 14 RPM, and is optimized for a 5 Hp/ 3.7 Kw power rating, providing continuous, reliable performance for your automated systems.

View full details
ParameterValue
Brand
Bonfiglioli
Gear Ratio
100
Gearbox Type
Worm Reduction
Maximum Output Torque
2000 Nm
Shaft Diameter
50 Mm
Power Rating
5 Hp/ 3.7 Kw
Maximum Speed
14 RPM
Input Speed
1400
Housing Type
Cast Iron
ParameterValue
Motor Frame Type
Iec Std Frame 112 B5
Motor Coupling
Direct
Lubrication
Without Oil
Mounting Version
Foot Mount
Input Shaft Diameter
28 Mm
Output Shaft Type (Alt)
Hollow Output With Keyway
Efficiency
65
Service Factor
1
Warranty
12 Months
