• Bonfiglioli - VF 130 A64 P90 B5 B3
1 1

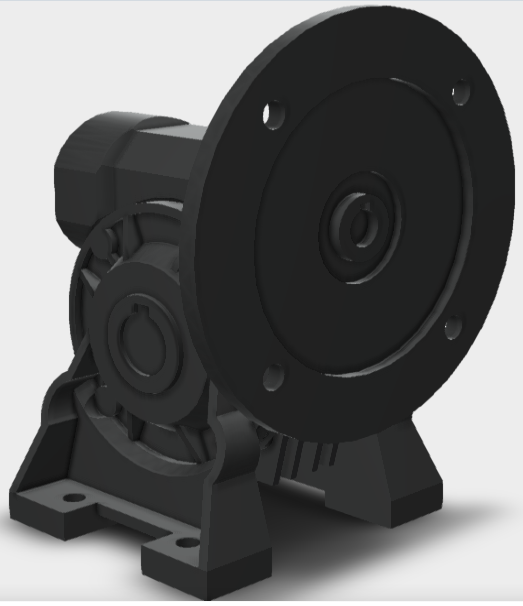

Bonfiglioli VF 130 A64 P90 B5 B3 - Worm Gearboxes, 64 Ratio (45 Mm Shaft)

Bonfiglioli VF 130 A64 P90 B5 B3 - Worm Gearboxes, 64 Ratio (45 Mm Shaft)

SKUVF 130 A64 P90 B5 B3BrandBonfiglioli
AED 4,623.00
AED 4,623.00
Sale Sold out
Shipping calculated at checkout.

The VF 130 A64 P90 B5 B3 is a high-performance Worm Gearboxes manufactured by Bonfiglioli, engineered for robust power transmission in demanding industrial applications. Delivering a precise 64 gear ratio and a maximum output torque of 1500 Nm, this Worm Reduction configuration ensures efficient mechanical operation and superior load management. Designed for seamless integration, it features a 45 Mm shaft diameter, supports a maximum speed of 21.88 RPM, and is optimized for a 2 Hp/ 1.5 Kw power rating, providing continuous, reliable performance for your automated systems.

View full details
ParameterValue
Brand
Bonfiglioli
Gear Ratio
64
Gearbox Type
Worm Reduction
Maximum Output Torque
1500 Nm
Shaft Diameter
45 Mm
Power Rating
2 Hp/ 1.5 Kw
Maximum Speed
21.88 RPM
Input Speed
1400
Housing Type
Cast Iron
ParameterValue
Motor Frame Type
Iec Std Frame 90 B5
Motor Coupling
Direct
Lubrication
Without Oil
Mounting Version
Foot Mount
Input Shaft Diameter
24 Mm
Output Shaft Type (Alt)
Hollow Output With Keyway
Efficiency
71
Service Factor
1
Warranty
12 Months
