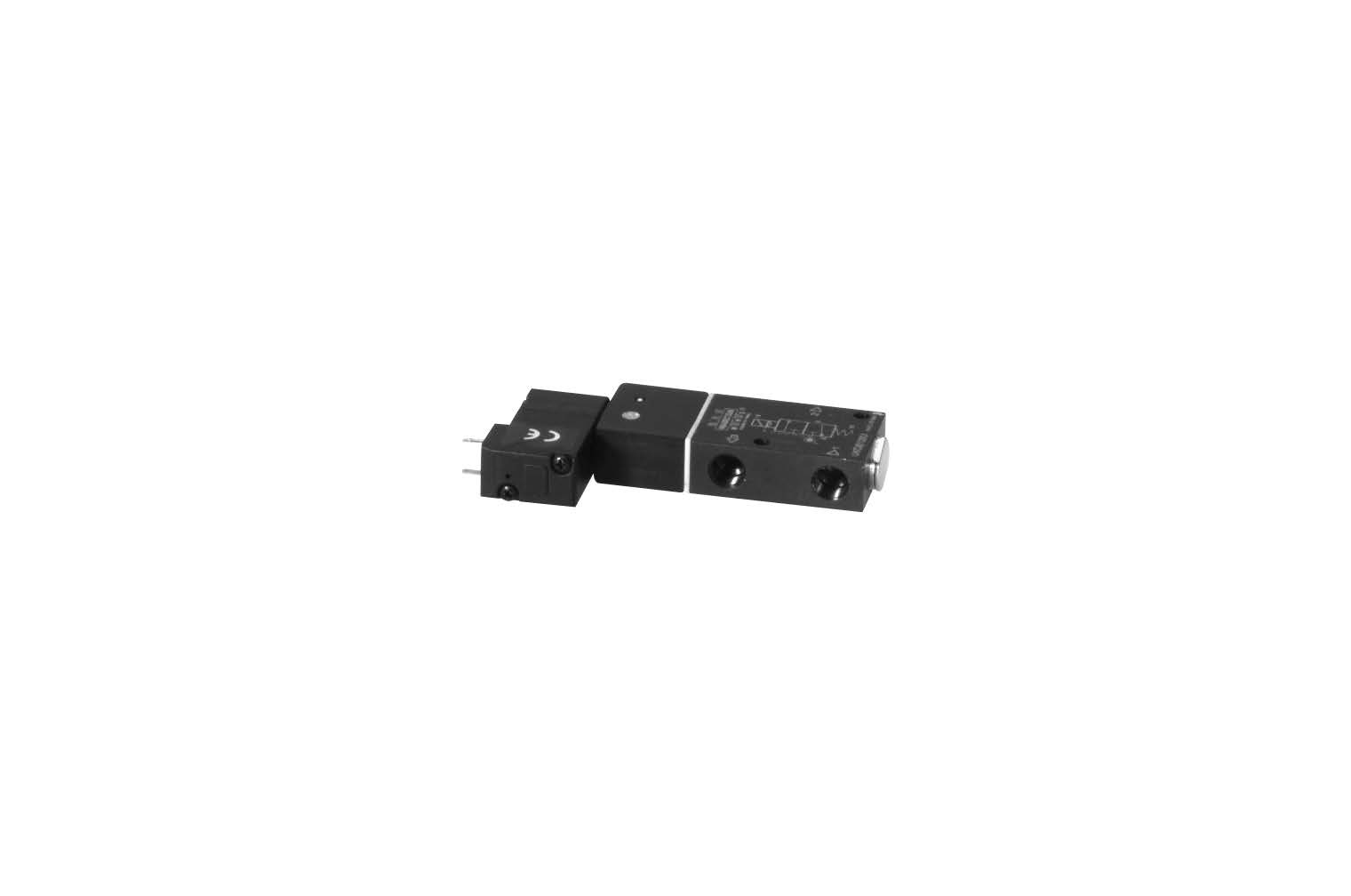

Waircom UKC8/12/U 11050-60 - Series UK 3/2 NC monostable Pneumatic Pilot Valve

Name: Waircom UKC8/12/U 11050-60 - Series UK 3/2 NC monostable Pneumatic Pilot Valve
Brand: Waircom
SKU: UKC8/12/U 11050-60
Price: 228.00 AED
Availability: InStock

SKUUKC8/12/U 11050-60BrandWaircom

AED 228.00

Sale Sold out

Shipping calculated at checkout.

In stock

Quantity

The Waircom UKC8/12/U 11050-60 is a professional-grade 3/2 NC monostable mechanical fluid valve from the ultra-reliable Series UK system. Utilizing an external solenoid (pre-assembled) actuation setup, this valve relies on a small (Ø12 mm) pilot system to instantly cycle states. The internal mechanism features an efficient 6 mm nominal flow path diameter housed alongside standard G 1/8 thread pneumatic connections.

View full details

Brand: Waircom
Series: Series UK
Function: 3/2 NC monostable
Normal State: NC
Port Size: G 1/8

Nominal Diameter: 6 mm
Pilot System: small (Ø12 mm)
Actuation: Solenoid (pre-assembled with UMCSV 15 mm coil, 110 V AC 50/60 Hz)
Voltage: 110 V AC 50/60 Hz
Assembly: Pre-assembled solenoid valve with coil
