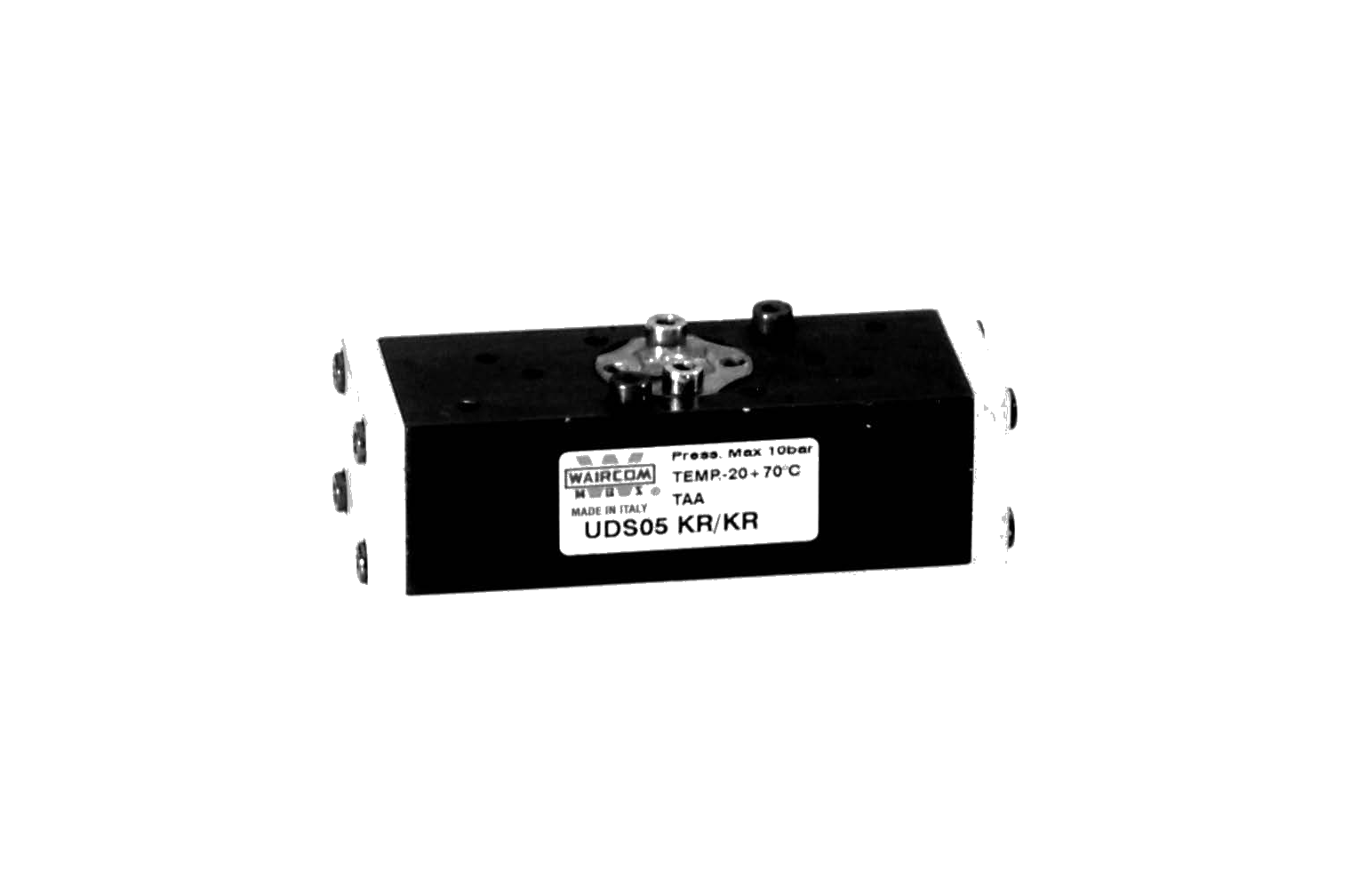

Waircom UDS05 KR/TQ - UDS CETOP Size 05 5/2 monostable Pilot Actuated Valve

Waircom UDS05 KR/TQ - UDS CETOP Size 05 5/2 monostable Pilot Actuated Valve

SKUUDS05 KR/TQBrandWaircom
AED 200.00
AED 200.00
Sale Sold out
Shipping calculated at checkout.

In stock

The Waircom UDS05 KR/TQ is a high-performance 5/2 monostable directional control valve from the specialized UDS CETOP Size 05 range. Natively designed to mount directly onto bases meeting the historic ex CETOP RP 32 P interface standard, this valve relies on a Pneumatic pilot and Pneumatic spring pneumatic pilot control system for reliable shifting. The assembly features an anodized aluminium alloy body that delivers a precise 415 Nl/min capacity, optimized for system pressures between 2.5 to 10 bar (monostable) and temperatures of 0 to +70 °C (-20 °C with dry air).

View full details
  • Brand: Waircom
  • Size: Size 05
  • Interface Standard: ex CETOP RP 32 P
  • Function: 5/2 monostable
  • Actuation: Pilot actuated (pneumatic only)
  • Left (Port 14) Control: Pneumatic pilot
  • Right (Port 12) Control: Pneumatic spring
  • Flow Rate: 415 Nl/min
  • Operating Pressure: 2.5 to 10 bar (monostable)
  • Working Temperature: 0 to +70 °C (-20 °C with dry air)
  • Body Material: Anodized aluminium alloy
