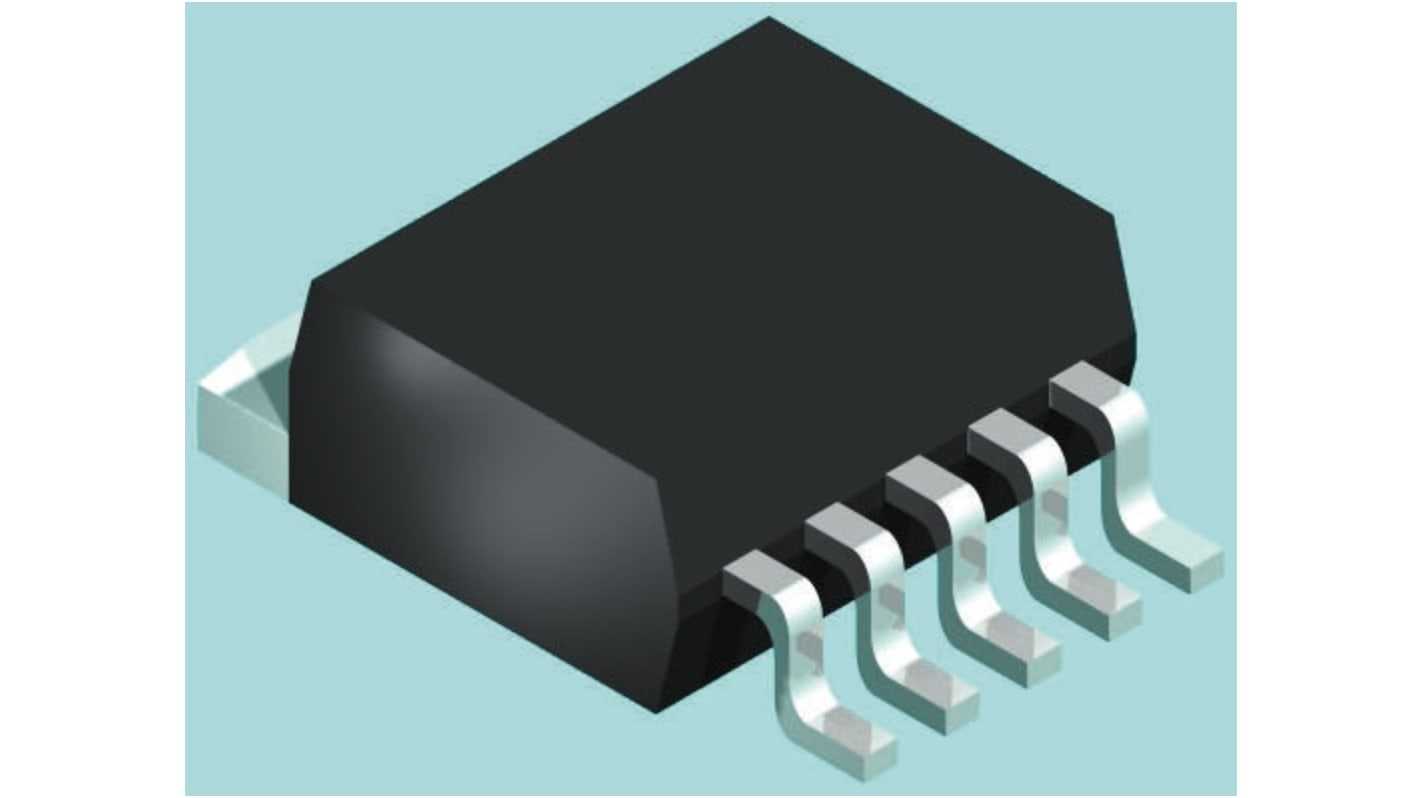

TPS79533DCQ - Texas-instruments Low Dropout Voltage Regulator, 3.3 V 500 mA (SOT-223)

TPS79533DCQ - Texas-instruments Low Dropout Voltage Regulator, 3.3 V 500 mA (SOT-223)

AED 15.00
AED 15.00
Sale Sold out
Shipping calculated at checkout.

The TPS79533DCQ is a precision-engineered Low Dropout Voltage regulator from Texas-instruments. Delivering a Fixed 3.3 V output at up to 500 mA across 1 output(s), accepting 2.7 V to 5.5 V input. Housed in a SOT-223 Surface-Mount package with 5+Tab pins with ±2% output accuracy, designed for stable power delivery in embedded systems, IoT devices, and industrial electronics.
View full details

Specifications

  • Brand: Texas-instruments
  • Accuracy: 2.00%
  • Dimensions: 6.5 x 3.5 x 1.6 mm
  • Height: 1.6 mm
  • Length: 6.5 mm
  • Line Regulation: 0.05 %/V
  • Load Regulation: 3 mV
  • Maximum Input Voltage: 5.5 V
  • Maximum Operating Temperature: 125 °C
  • Maximum Output Current: 500 mA
  • Minimum Input Voltage: 2.7 V
  • Minimum Operating Temperature: -40 °C
  • Mounting Type: Surface-Mount
  • Number of Outputs: 1
  • Output Type: Fixed
  • Output Voltage: 3.3 V
  • Package Type: SOT-223
  • Pin Count: 5+Tab
  • Polarity: Positive
  • Quiescent Current: 0.265 mA
  • Regulator Type: Low-Dropout Voltage
  • Width: 3.5 mm
