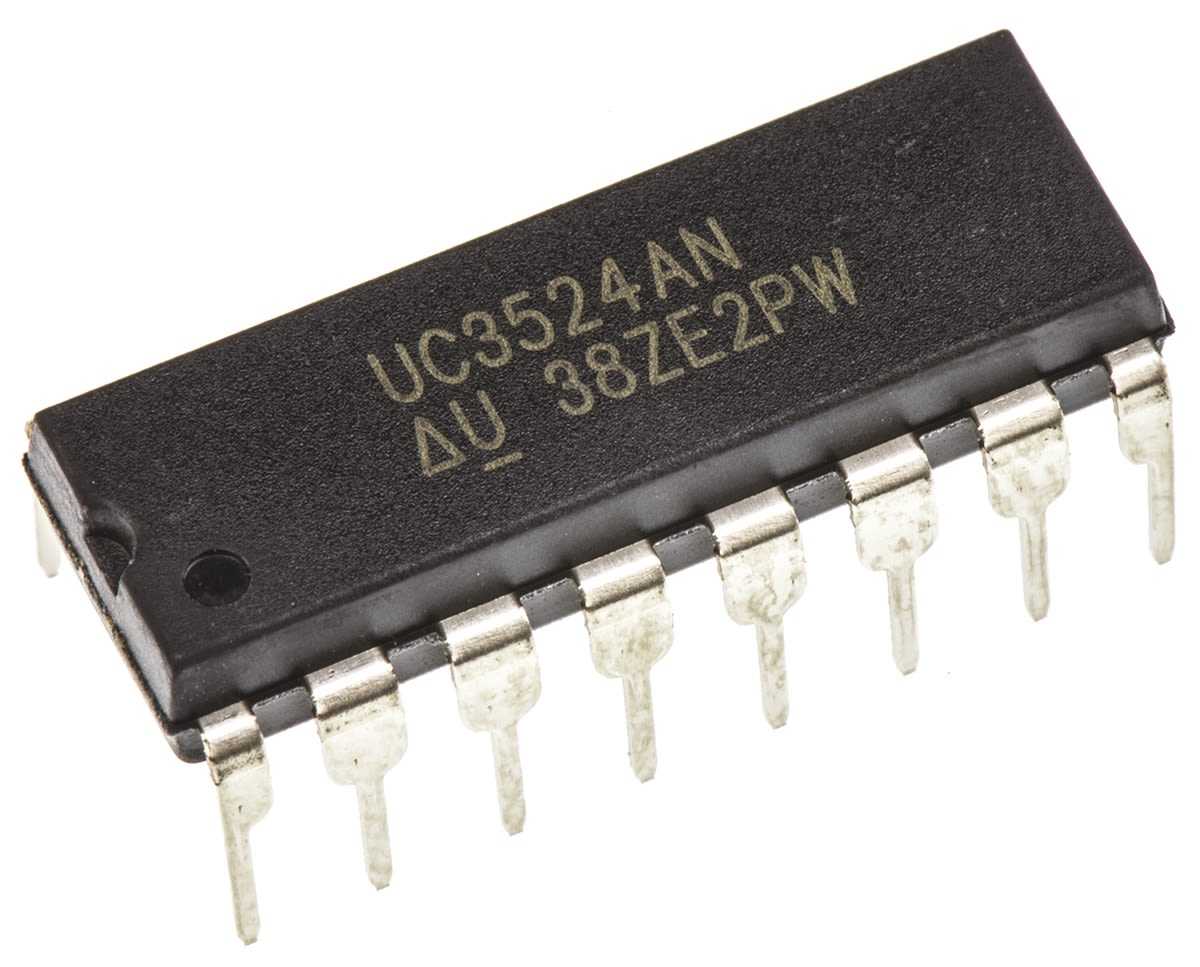

Texas-instruments PWM UC3524AN

Texas-instruments PWM UC3524AN

SKUUC3524ANBrandTexas-instruments
Regular price AED 9.77
Regular price Sale price AED 9.77
Sale Sold out
Shipping calculated at checkout.

Texas-instruments, Advanced 40 VCC, double ended 300KHz voltage mode PWM controller with 45% duty cycle, 0C to 70C

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Talk to a Specialist
  • Brand: Texas Instruments
  • Maximum Switching Frequency: 500 kHz
  • Output Voltage: 60 V
  • Output Current: 200 mA
  • Control Method: Voltage
  • Number of Outputs: 2
  • Mounting Type: Through Hole
  • Package Type: PDIP
  • Topology: Boost, Buck, Flyback, Forward, Full Bridge, Half Bridge, Push-Pull
  • Pin Count: 16
  • Dimensions: 19.3 x 6.35 x 4.57mm
  • Length: 19.3mm
  • PWM Controller Type: Current Mode
  • Width: 6.35mm
  • Height: 4.57mm
  • Maximum Operating Temperature: +70 °C
  • Minimum Operating Supply Voltage: 8 V
  • Minimum Operating Temperature: 0 °C
  • Maximum Operating Supply Voltage: 40 V
  • Country of Origin: Malaysia
