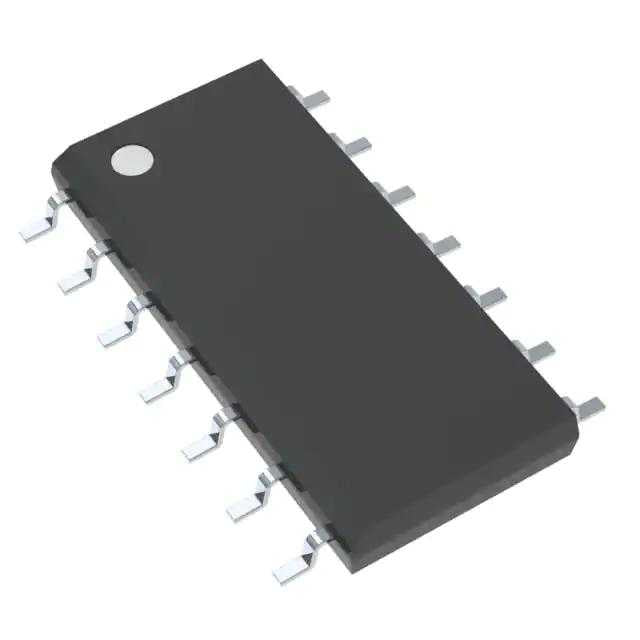

Texas-instruments Logic Gates CD4093BM

Texas-instruments Logic Gates CD4093BM

SKUCD4093BMBrandTexas-instruments
AED 3.67
AED 3.67
Sale Sold out
Shipping calculated at checkout.

Texas-instruments, 4-ch, 2-input, 3-V to 18-V NAND gates with Schmitt-Trigger inputs

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Talk to a Specialist
  • Brand: Texas Instruments
  • Logic Function: NAND
  • Mounting Type: Surface Mount
  • Number Of Elements: 4
  • Number of Inputs per Gate: 2
  • Schmitt Trigger Input: Yes
  • Package Type: SOIC
  • Pin Count: 14
  • Logic Family: 4000
  • Input Type: Schmitt Trigger
  • Maximum Operating Supply Voltage: 18 V
  • Maximum High Level Output Current: -4.2mA
  • Maximum Propagation Delay Time @ Maximum CL: 130 ns @ 15 V, 180 ns @ 10 V, 380 ns @ 5 V
  • Minimum Operating Supply Voltage: 3 V
  • Maximum Low Level Output Current: 4.2mA
  • Minimum Operating Temperature: -55 °C
  • Maximum Operating Temperature: +125 °C
  • Length: 8.65mm
  • Height: 1.58mm
  • Width: 3.91mm
  • Dimensions: 8.65 x 3.91 x 1.58mm
  • Propagation Delay Test Condition: 50pF
