• Te-connectivity - T4162123004-001
1 1

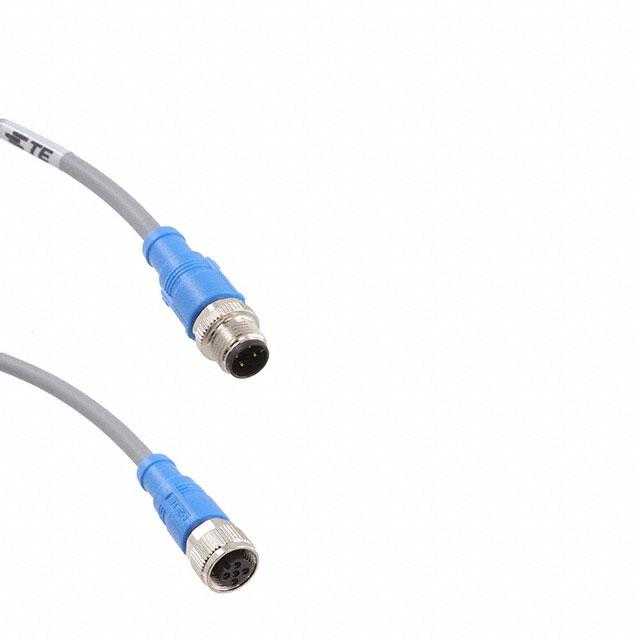

T4162123004-001 - Te-connectivity Sensor & Actuator Cable, 500 mm M12

T4162123004-001 - Te-connectivity Sensor & Actuator Cable, 500 mm M12

SKUT4162123004-001BrandTe-connectivity
AED 98.00
AED 98.00
Sale Sold out
Shipping calculated at checkout.

The T4162123004-001 is a professional-grade sensor and actuator cable from Te-connectivity, part of the T416 series. Measuring 500 mm in length and 0.34 mm² cross-sectional area, this cable features a M12 Female; Male (Straight) connector. Constructed with a Grey Nylon sheath and rated IP67, supporting 250 V at 4 A, it is designed for dependable sensor-to-actuator connectivity in industrial automation, robotics, and process control environments.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Brand: Te-connectivity
  • American Wire Gauge: 22 AWG
  • Coding: A
  • Conductor Material: Copper
  • Connector 1: M12
  • Connector 1 Gender: Female; Male
  • Connector 1 Number of Contacts: 4
  • Connector 1 Orientation: Straight
  • Connector 2: M12
  • Connector 2 Number of Contacts: 4
  • Connector 2 Orientation: Straight
  • Cross Sectional Area: 0.34 mm²
  • Current Rating: 4000 mA
  • IP Rating: IP67
  • Insulation material: PUR
  • Length: 500 mm
  • Maximum Operating Temperature: 80 °C
  • Minimum Operating Temperature: -10 °C, -5 °C
  • Series: T416
  • Sheath Colour: Grey
  • Sheath Material: Nylon
  • Voltage Rating: 250 V
