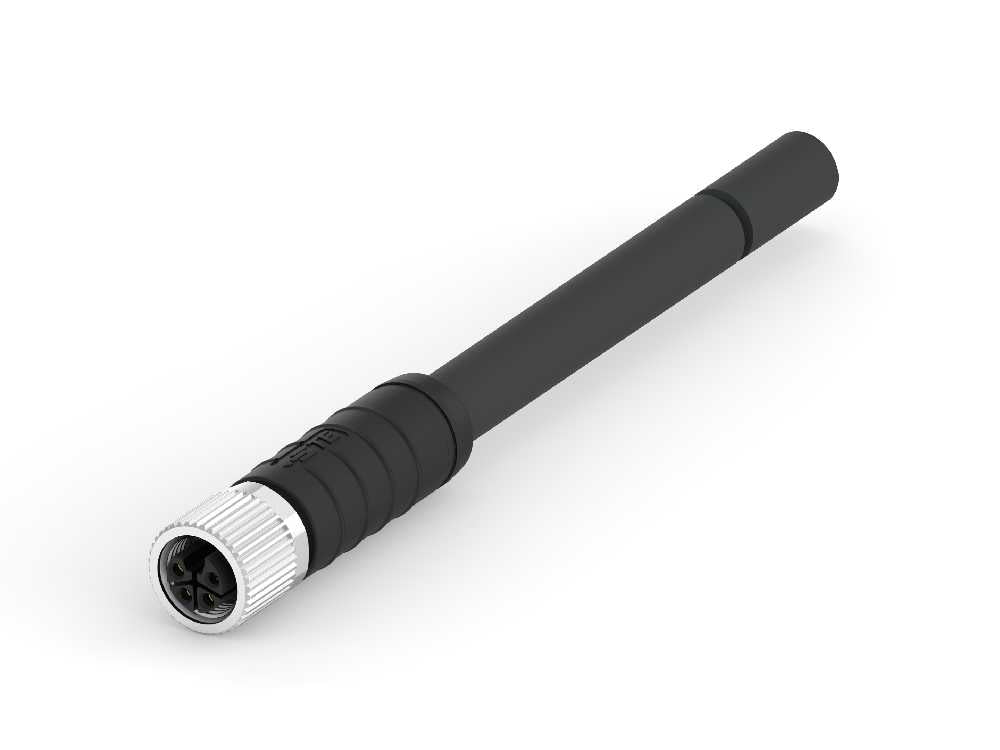

T41513C9L25-005 - Te-connectivity Sensor & Actuator Cable, 5m M12

T41513C9L25-005 - Te-connectivity Sensor & Actuator Cable, 5m M12

SKUT41513C9L25-005BrandTe-connectivity
AED 312.00
AED 312.00
Sale Sold out
Shipping calculated at checkout.

The T41513C9L25-005 is a professional-grade sensor and actuator cable from Te-connectivity, part of the M12 L-Code series. Measuring 5m in length and 1.5 mm² cross-sectional area, this cable features a M12 Female (Female) connector. Constructed with a Grey Nylon sheath and rated IP67, supporting 63 V at 0 A, it is designed for dependable sensor-to-actuator connectivity in industrial automation, robotics, and process control environments.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Brand: Te-connectivity
  • American Wire Gauge: 16 AWG
  • Coding: L
  • Conductor Material: Copper
  • Connector 1: M12
  • Connector 1 Gender: Female
  • Connector 1 Number of Contacts: 5
  • Connector 2: M12
  • Connector 2 Gender: Female
  • Connector 2 Housing Gender: Female
  • Connector 2 Number of Contacts: 5
  • Connector 2 Orientation: Straight
  • Cross Sectional Area: 1.5 mm²
  • Current Rating: 0 mA
  • IP Rating: IP67
  • Insulation material: PP
  • Length: 5m
  • Maximum Operating Temperature: 85 °C
  • Minimum Operating Temperature: -25 °C
  • Number of Strands: 75
  • Outer Diameter: 9.1 mm
  • Series: M12 L-Code
  • Sheath Colour: Grey
  • Sheath Material: Nylon
  • Standards Met: UL
  • Voltage Rating: 63 V
