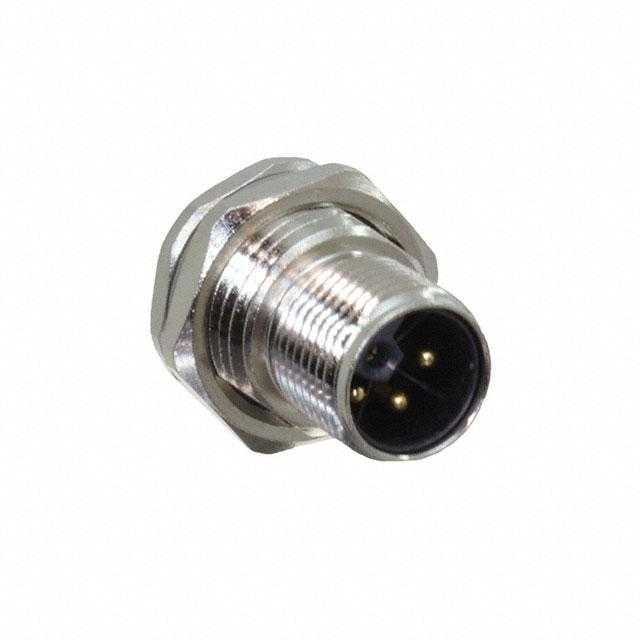

T4140L12041-000 - Te-connectivity M12 Male Circular Connector, 3-Contact (Rear-Mount)

T4140L12041-000 - Te-connectivity M12 Male Circular Connector, 3-Contact (Rear-Mount)

SKUT4140L12041-000BrandTe-connectivity
AED 27.00
AED 27.00
Sale Sold out
Shipping calculated at checkout.

The T4140L12041-000 is a highly durable industrial circular connector from Te-connectivity, part of the L series. This M12 Plug features 3 Male contacts, a Straight body orientation and a Solder termination method. Rated IP67 for demanding environments and built with a Polymer housing, it delivers a secure, vibration-resistant connection via Solder mating. Configured for Rear-Mount installation, it delivers reliable signal and power transmission for factory automation, sensor integration, and industrial networking applications.

View full details
ParameterValue
Brand
Te-connectivity
Mounting Type
Rear-Mount
Plug/Socket
Plug
Number Of Contacts
3
Connector Size
M12
Termination Method
Solder
Body Orientation
Straight
Contact Gender
Male
IP Rating
IP67
ParameterValue
Minimum Operating Temperature
-40 °C
Maximum Operating Temperature
85 °C
Current Rating
16000 mA
Housing Material
Polymer
Voltage Rating
63.00 V
Shell Size
18
Contact Material
Copper
Coding
L
Pole Format
3P+PE
