• Te-connectivity - T4062224004-001
1 1

T4062224004-001 - Te-connectivity Sensor & Actuator Cable, 500 mm M8

T4062224004-001 - Te-connectivity Sensor & Actuator Cable, 500 mm M8

SKUT4062224004-001BrandTe-connectivity
AED 88.00
AED 88.00
Sale Sold out
Shipping calculated at checkout.

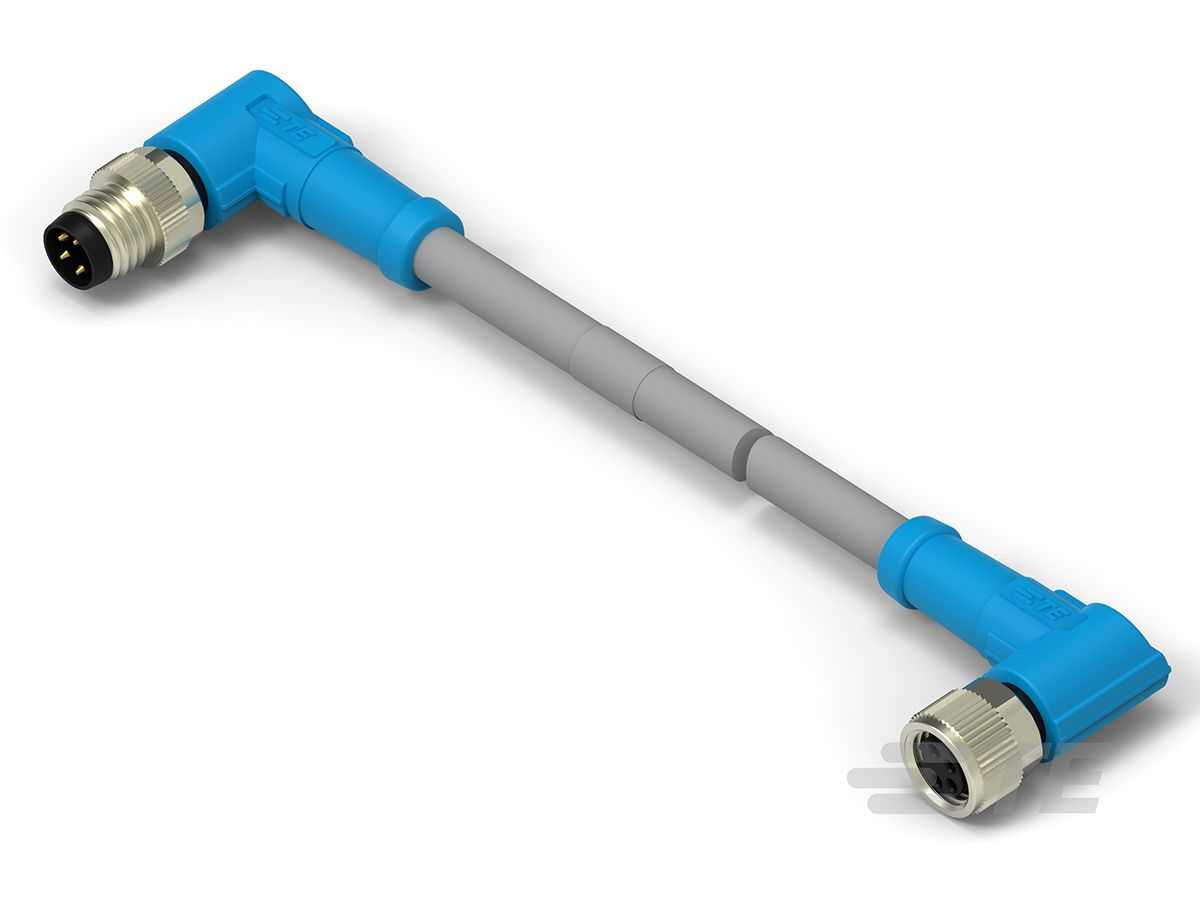

The T4062224004-001 is a professional-grade sensor and actuator cable from Te-connectivity, part of the T406 series. Measuring 500 mm in length and 0.25 mm² cross-sectional area, this cable features a M8 Female; Male (Right-Angle) connector. Constructed with a Grey Nylon sheath and rated IP67, supporting 30 V at 3 A, it is designed for dependable sensor-to-actuator connectivity in industrial automation, robotics, and process control environments.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Brand: Te-connectivity
  • American Wire Gauge: 24 AWG
  • Coding: A
  • Conductor Material: Copper-Alloy
  • Connector 1: M8
  • Connector 1 Gender: Female; Male
  • Connector 1 Number of Contacts: 4
  • Connector 1 Orientation: Right-Angle
  • Connector 2: M8
  • Connector 2 Number of Contacts: 4
  • Connector 2 Orientation: Right-Angle
  • Cross Sectional Area: 0.25 mm²
  • Current Rating: 3000 mA
  • IP Rating: IP67
  • Insulation material: PVC
  • Length: 500 mm
  • Maximum Operating Temperature: 80 °C
  • Minimum Operating Temperature: -10 °C, -5 °C
  • Outer Diameter: 5 mm
  • Series: T406
  • Sheath Colour: Grey
  • Sheath Material: Nylon
  • Voltage Rating: 30 V
