• Te-connectivity - HDP26-24-31SE-L017
1 1

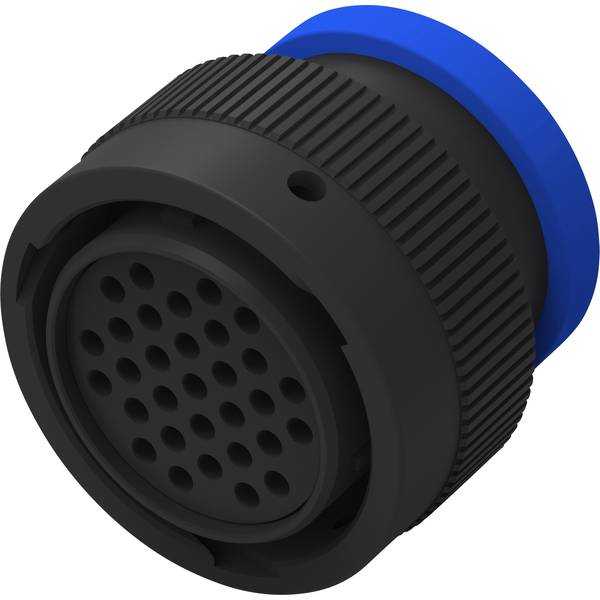

HDP26-24-31SE-L017 - Te-connectivity 24 Female Circular Connector, 31-Contact (Cable-Mount)

HDP26-24-31SE-L017 - Te-connectivity 24 Female Circular Connector, 31-Contact (Cable-Mount)

SKUHDP26-24-31SE-L017BrandTe-connectivity
AED 137.00
AED 137.00
Sale Sold out
Shipping calculated at checkout.

The HDP26-24-31SE-L017 is a highly durable industrial circular connector from Te-connectivity, part of the HD20 series. This 24 Plug features 31 Female contacts, a Straight body orientation and a Crimp termination method. Rated IP67 for demanding environments and built with a Thermoplastic housing, it delivers a secure, vibration-resistant connection via Bayonet mating. Configured for Cable-Mount installation, it delivers reliable signal and power transmission for factory automation, sensor integration, and industrial networking applications.

View full details
ParameterValue
Brand
Te-connectivity
Mounting Type
Cable-Mount
Plug/Socket
Plug
Number Of Contacts
31
Termination Method
Crimp
Body Orientation
Straight
Contact Gender
Female
IP Rating
IP67
Series
HD20
ParameterValue
Minimum Operating Temperature
-55 °C
Maximum Operating Temperature
125 °C
Mating Type
Bayonet
Housing Material
Thermoplastic
Shell Size
24
Contact Material
Copper
Contact Plating
Nickel
Strain Relief
Yes
