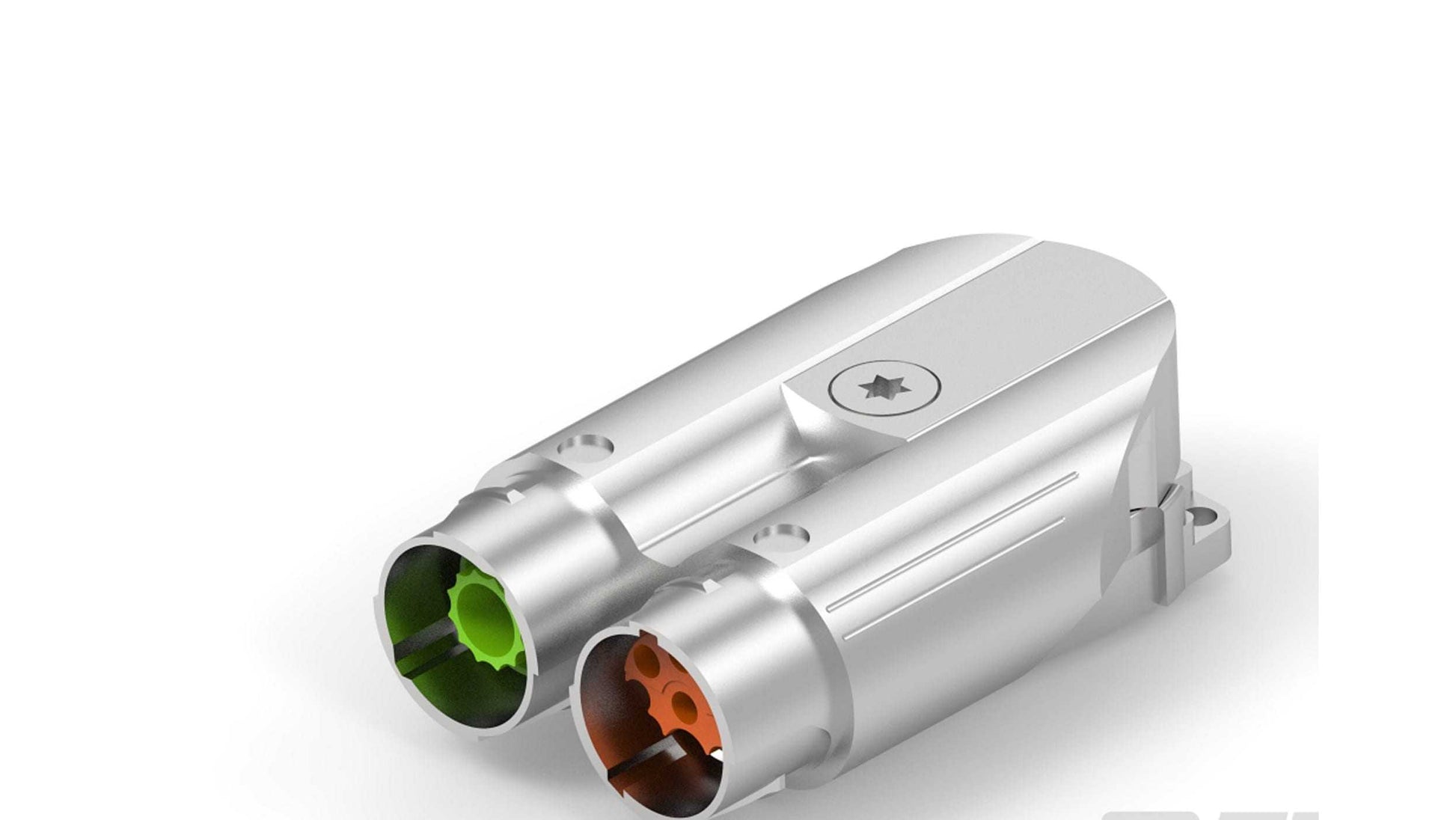

EEDA101NN00000001000 - Te-connectivity M15 Male Circular Connector, 21-Contact (Panel-Mount)

EEDA101NN00000001000 - Te-connectivity M15 Male Circular Connector, 21-Contact (Panel-Mount)

SKUEEDA101NN00000001000BrandTe-connectivity
AED 589.00
AED 589.00
Sale Sold out
Shipping calculated at checkout.

The EEDA101NN00000001000 is a highly durable industrial circular connector from Te-connectivity, part of the Ytec 615/915 series. This M15 Plug features 21 Male contacts, a Right-Angle body orientation and a Plug-In termination method. Rated IP67 for demanding environments and built with a Zinc-Alloy housing, it delivers a secure, vibration-resistant connection via Push-Pull mating. Configured for Panel-Mount installation, it delivers reliable signal and power transmission for factory automation, sensor integration, and industrial networking applications.

View full details
ParameterValue
Brand
Te-connectivity
Mounting Type
Panel-Mount
Plug/Socket
Plug
Number Of Contacts
21
Connector Size
M15
Termination Method
Plug-In
Body Orientation
Right-Angle
Contact Gender
Male
IP Rating
IP67
ParameterValue
Series
Ytec 615/915
Minimum Operating Temperature
-20 °C
Maximum Operating Temperature
130 °C
Mating Type
Push-Pull
Current Rating
14000 mA
Housing Material
Zinc-Alloy
Voltage Rating
630.00 V
Shell Size
15
Contact Plating
Brass
