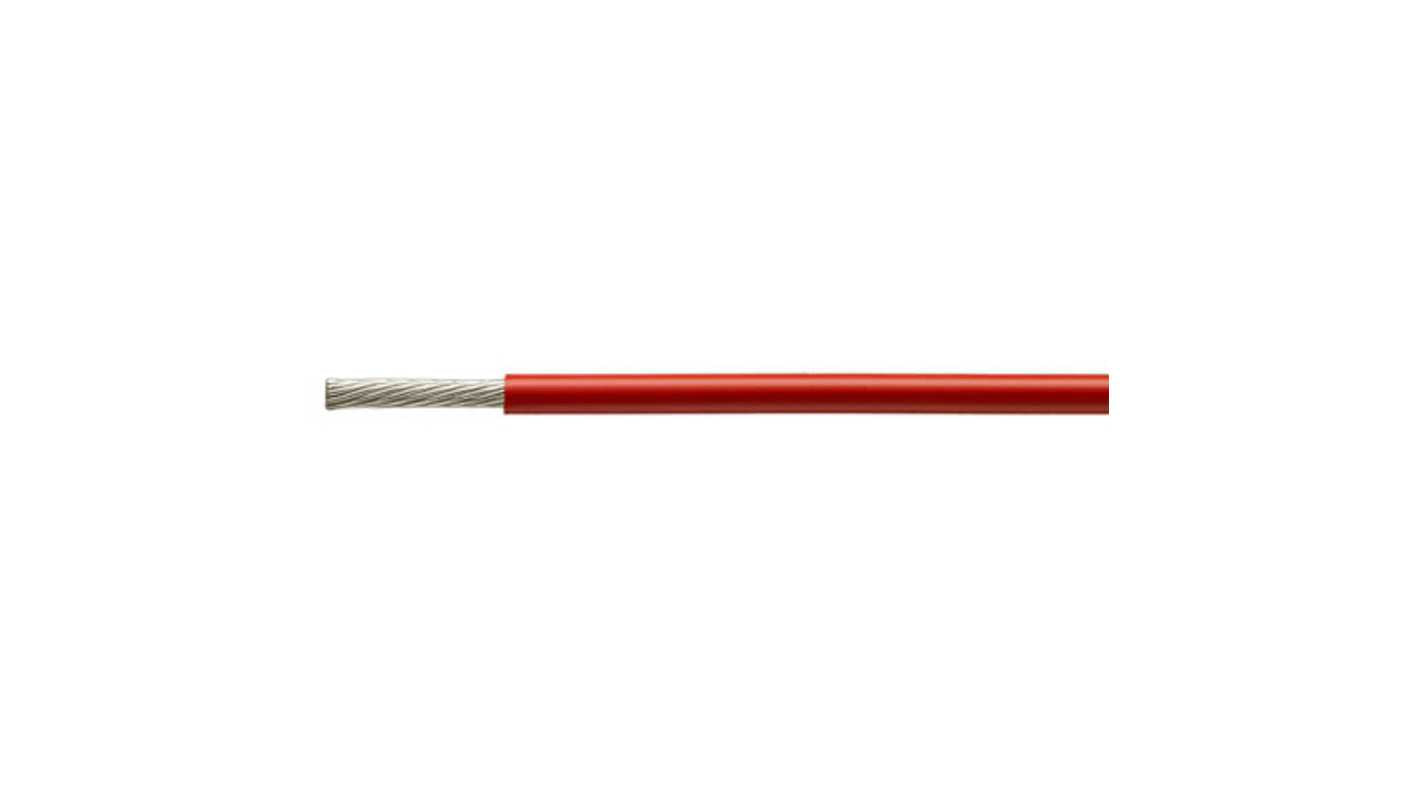

Te-connectivity Hook Up Wire 99M0111-16-2L

Te-connectivity Hook Up Wire 99M0111-16-2L

SKU99M0111-16-2LBrandTe-connectivity
AED 825.65
AED 825.65
Sale Sold out
Shipping calculated at checkout.

Te-connectivity, Hook Up Wire, Spec 99M, 600V Voltage Rating, Tin-Plated Copper, 16 AWG Wire Size, 1.31 mm ² Wire Size, Operating Temperature Range -55 – 120 °C; Alias: 8-1195227-3 99M0111-16-2L

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Brand: TE Connectivity
  • Cross Sectional Area: 1.3 mm²
  • Sheath Colour: Pink
  • American Wire Gauge: 16 AWG
  • Cable Shape: Single Core
  • Core Strands: 19/29
  • Length: 100m
  • Insulation material: Polyester
  • Voltage Rating: 600 V
  • Outer Diameter: 1.8mm
  • Maximum Operating Temperature: +125°C
  • Minimum Operating Temperature: -55°C
  • Conductor Material: Tinned Copper
  • Cable Type: Harsh Environment
  • Standards Met: RoHS Compliant
  • Fire Behaviour: Flame Retardant, Low Smoke Density, Self-extinguishing
  • Series: 99M
  • Shield Type: Unshielded
  • Insulation Wall Thickness: 0.15mm
  • Size of Strands: 29 AWG
  • Resistant To: Chemicals, Electric Arc Tracking, Flame, Fluids
  • Number of Strands: 19
  • Country of Origin: United Kingdom
