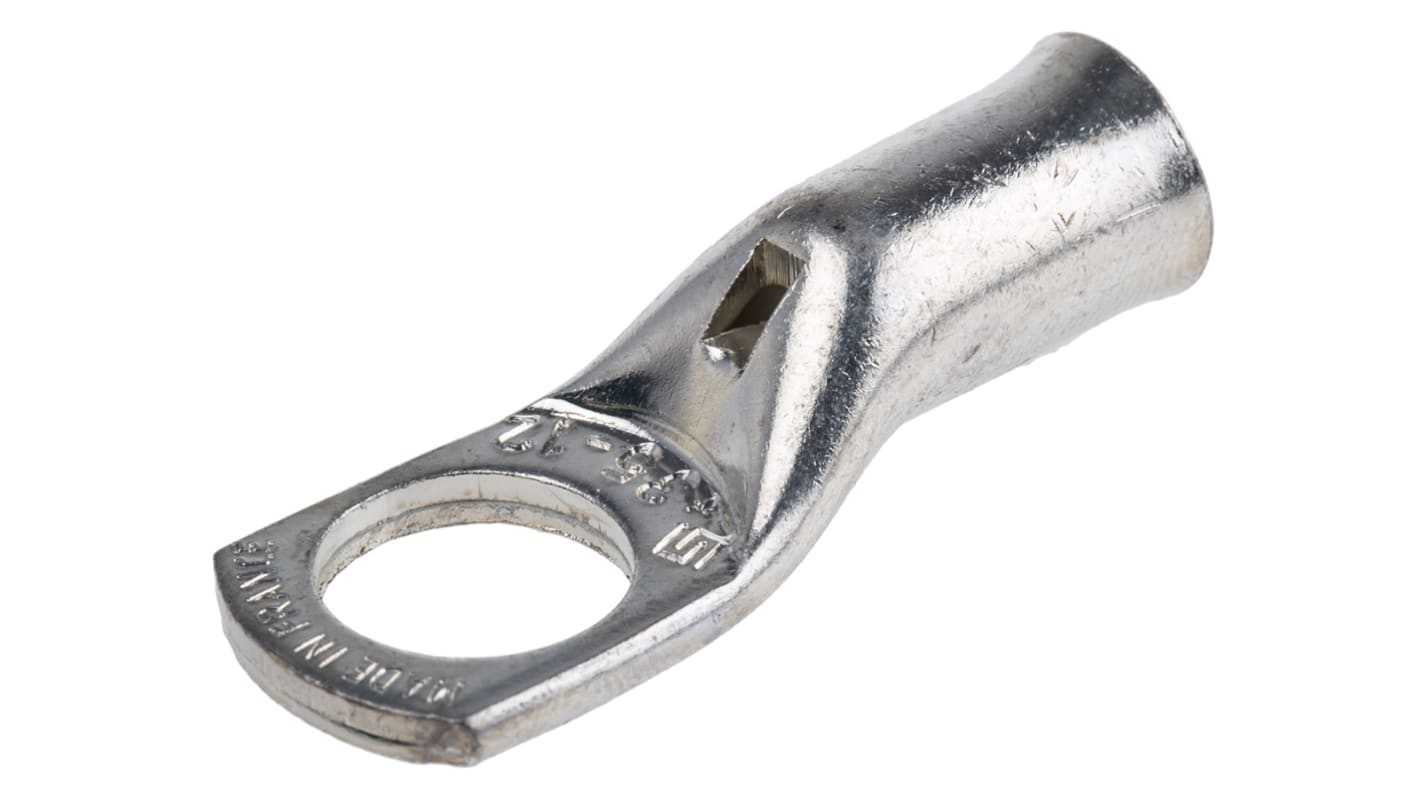

Te-connectivity Ring Terminals 710036-4

Te-connectivity Ring Terminals 710036-4

SKU710036-4BrandTe-connectivity
AED 15.16
AED 15.16
Sale Sold out
Shipping calculated at checkout.

Te-connectivity, Compression Connectors, EMEA, Crimp, ≤ 1 kV, Copper, Hexagonal or Indent Crimping, Copper, Indoor Use, Outdoor Use, Palm Hole Diameter 12.8, SIMEL XCT; Alias: 186864-000, SIML-0-0710036-4 XCT 35-12

View full details
  • Brand: TE Connectivity
  • Series: XCT
  • Inner Ring Diameter: 12.8mm
  • Outer Ring Diameter: 17mm
  • Minimum Wire Size mm²: 35mm²
  • Maximum Wire Size mm²: 35mm²
  • Minimum Wire Size (mm²): 35mm²
  • Maximum Wire Size (mm²): 35mm²
  • Stud Size: 12mm
  • Contact Plating: Tin
  • Contact Material: Copper
  • Thickness: 1.5mm
  • Overall Length: 46mm
