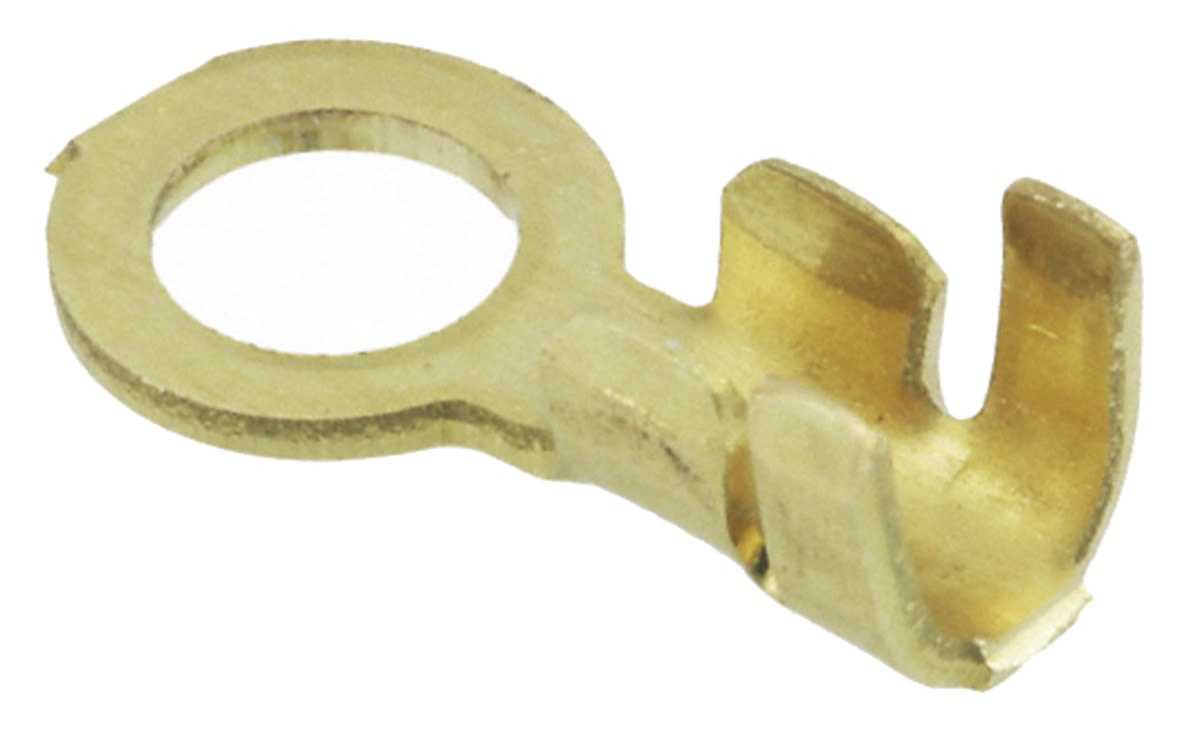

Te-connectivity Ring Terminals 61764-1

SKU61764-1BrandTe-connectivity

AED 51.02

Sale Sold out

Shipping calculated at checkout.

Quantity

Te-connectivity, TE Connectivity eye terminal, max wire dimens. 1.4mm , 16AWG Alias: RING CRIMP 20-16 AWG BR

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: TE Connectivity
Insulation: Uninsulated
Inner Ring Diameter: 3.68mm
Outer Ring Diameter: 5.84mm
Minimum Wire Size mm²: 0.5mm²
Maximum Wire Size mm²: 1.4mm²
Minimum Wire Size (mm²): 0.5mm²
Maximum Wire Size (mm²): 1.4mm²

Minimum Wire Size AWG: 20AWG
Maximum Wire Size AWG: 16AWG
Minimum Wire Size (AWG): 20AWG
Maximum Wire Size (AWG): 16AWG
Stud Size: M3.5 (#6)
Contact Material: Brass
Thickness: 0.635mm
Overall Length: 11.68mm
