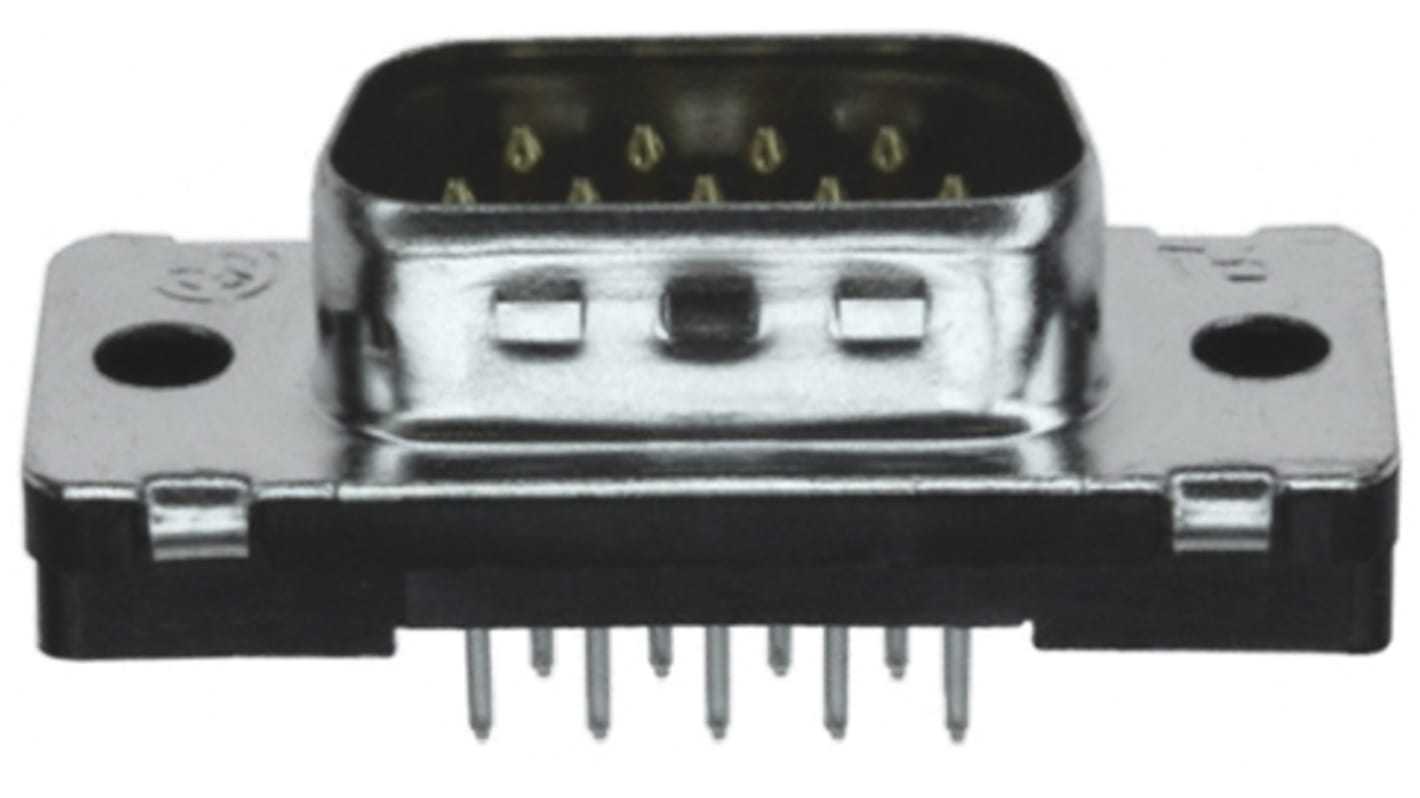

Te-connectivity D Sub Connectors 5747871-2

Te-connectivity D Sub Connectors 5747871-2

SKU5747871-2BrandTe-connectivity
Regular price AED 24.56
Regular price Sale price AED 24.56
Sale Sold out
Shipping calculated at checkout.

Te-connectivity, TE Connectivity D-Sub Connector, Male, 9-way, solder termination Alias: 09 PLUG SP/FMS STD

View full details
  • Brand: TE Connectivity
  • Number Of Contacts: 9
  • Gender: Male
  • Body Orientation: Straight
  • Mounting Type: Through Hole
  • Pitch: 2.74mm
  • D Connector Type: Standard D-Sub
  • Termination Method: Solder
  • Current Rating: 6.0A
  • Mixed Contact Layout: 9W2
  • Housing Material: Thermoplastic
  • Length: 1.21in
  • Width: 0.47in
  • Depth: 0.49in
  • Series: AMPLIMITE HD-20
  • Contact Plating: Gold, Nickel, Tin
  • Contact Material: Brass
  • Dimensions: 1.21 x 0.47 x 0.49in
  • Maximum Operating Temperature: +105°C
  • Series Number: 5747871
  • Minimum Operating Temperature: -55.0°C
