Te-connectivity D Sub Connectors 5747845-5

AED 16.03

Sale Sold out

Shipping calculated at checkout.

Quantity

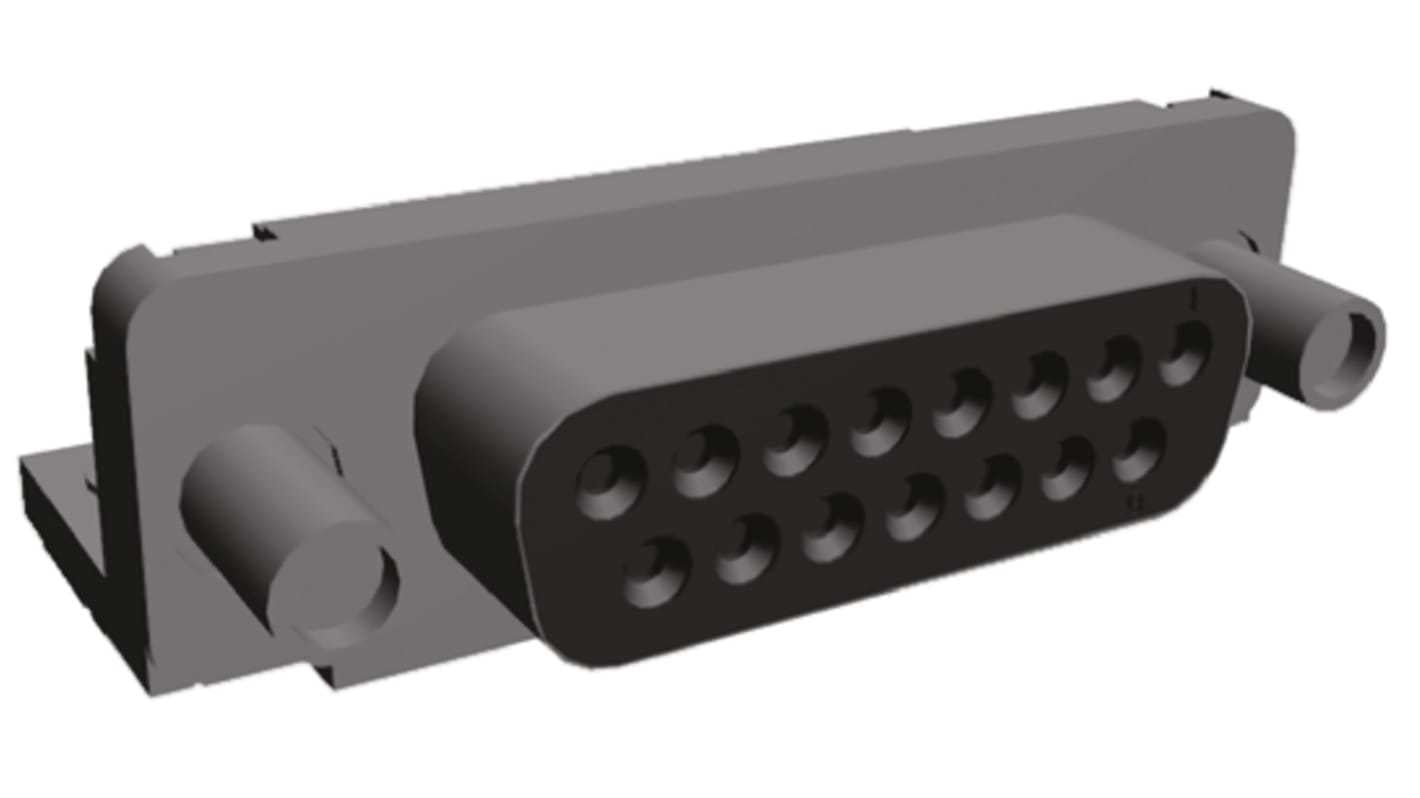

Te-connectivity, PCB D-Sub Connectors, Receptacle, Board-to-Board, 15 Position, 2.74 mm [.108 in] Centerline, 2 Row, 2 Connector Shell Size, Round, AMPLIMITE HD-20; Alias: 15 MSFL RCPT RA 318 (SL,FM,BL)

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: TE Connectivity
Number Of Contacts: 15
Gender: Female
Body Orientation: Right Angle
Mounting Type: Through Hole
Pitch: 2.74mm
Termination Method: Solder
Mounting Hardware: 4-40 UNC, Female Screw Lock
Current Rating: 6.0A
Housing Material: Thermoplastic

Length: 39.14mm
Width: 12.54mm
Depth: 18.79mm
Series: AMPLIMITE HD-20
Dimensions: 39.14 x 12.54 x 18.79mm
Contact Plating: Gold
Contact Material: Phosphor Bronze
Contact Size: 2
Minimum Operating Temperature: -55.0°C
Maximum Operating Temperature: +105°C
