Te-connectivity D Sub Connectors 5745967-8

AED 44.55

Sale Sold out

Shipping calculated at checkout.

Quantity

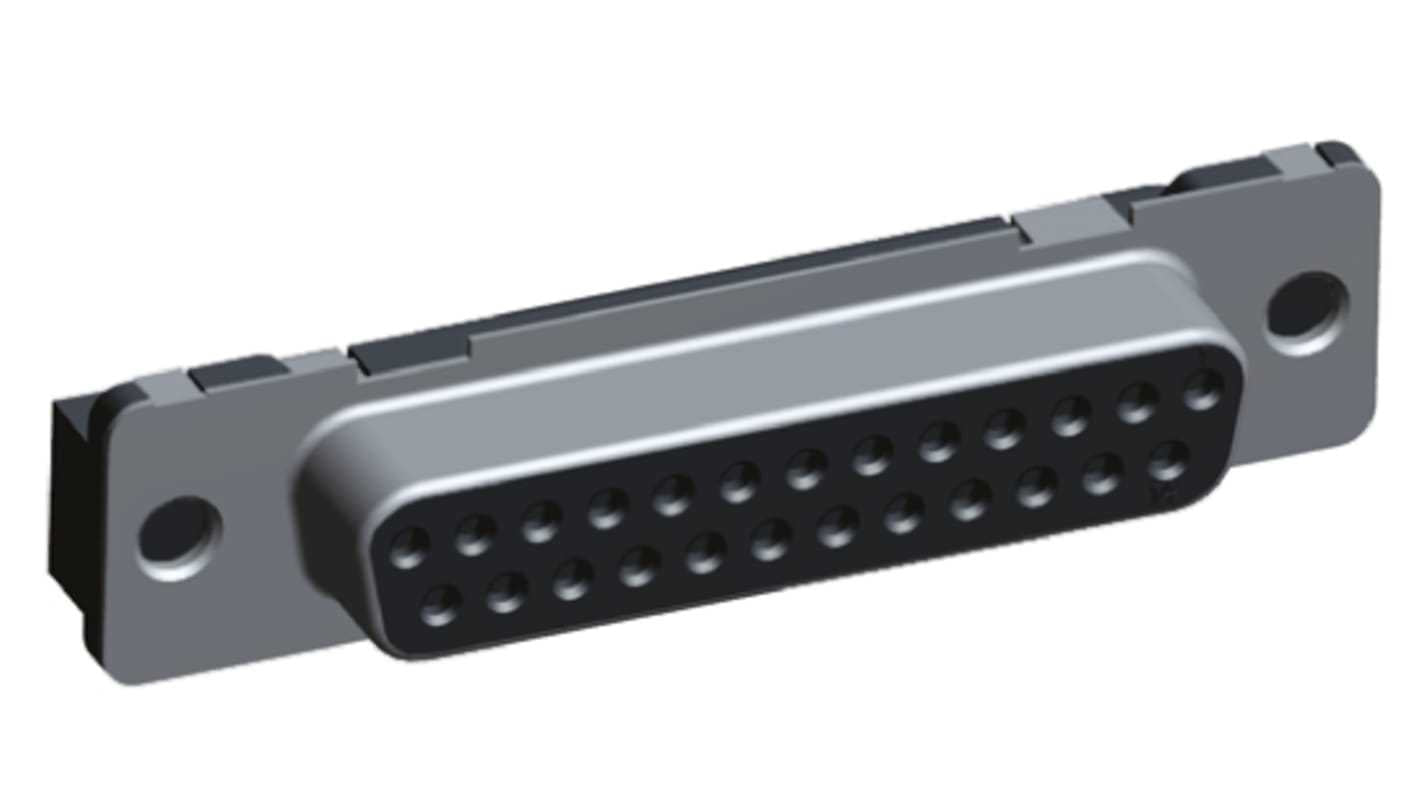

Te-connectivity, PCB D-Sub Connectors, Receptacle, Board-to-Board, 25 Position, 2.74 mm [.108 in] Centerline, 2 Row, 3 Connector Shell Size, Round, AMPLIMITE HD-20 Alias: 25 RCPT SP/FMS INSRT

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: TE Connectivity
Number Of Contacts: 25
Gender: Female
Body Orientation: Straight
Mounting Type: Through Hole
Pitch: 2.77mm
Termination Method: Solder
Mounting Hardware: 4-40 UNC, Threaded Insert
Housing Material: Thermoplastic
Voltage Rating: 250.0 V

Length: 53.09mm
Width: 12.16mm
Depth: 12.55mm
Series: AMPLIMITE HD-20
Dimensions: 53.09 x 12.16 x 12.55mm
Contact Plating: Gold
Contact Material: Phosphor Bronze
Contact Size: 20
Minimum Operating Temperature: -55.0°C
Maximum Operating Temperature: +105°C
