Te-connectivity Hook Up Wire 55A0111-22-5

AED 437.14

Sale Sold out

Shipping calculated at checkout.

Quantity

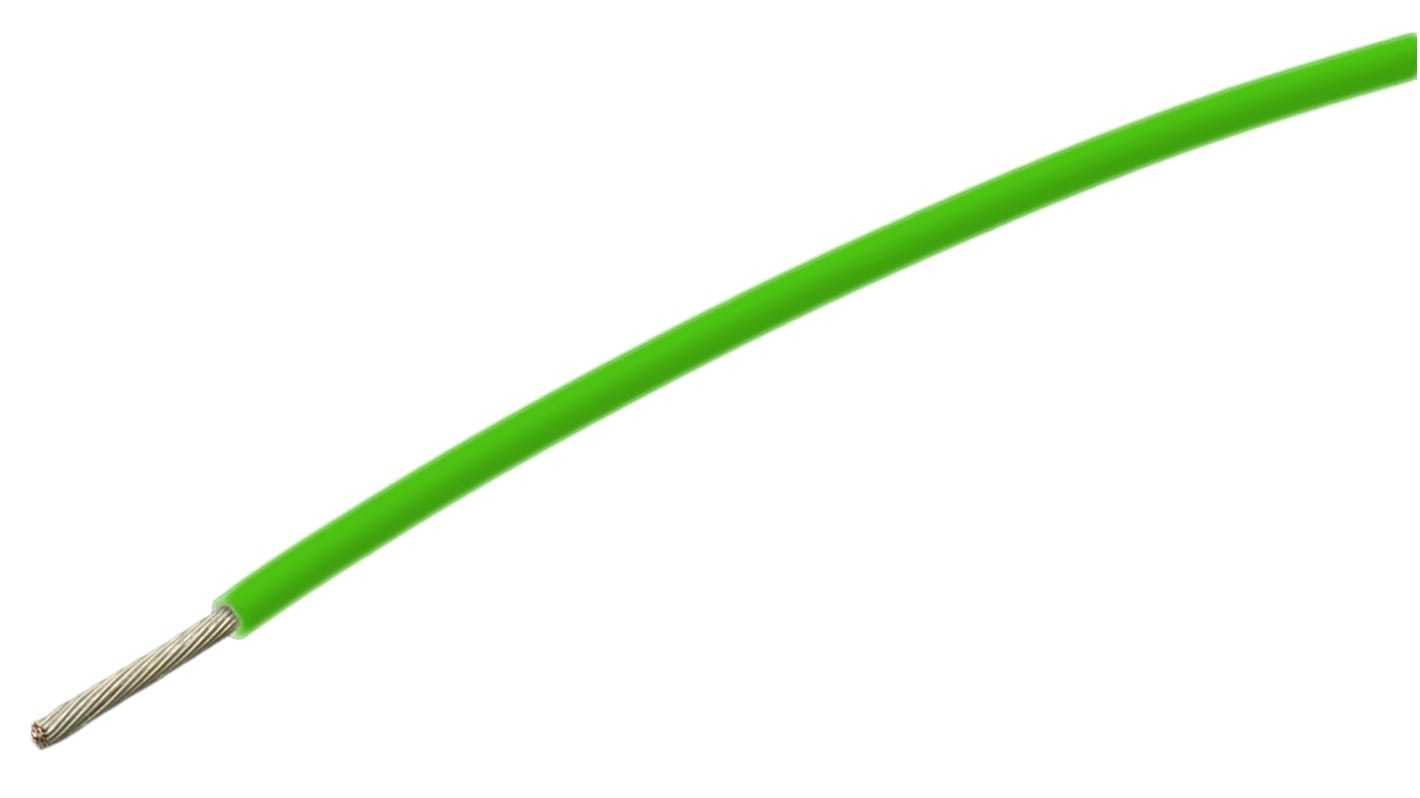

Te-connectivity, Hook Up Wire, Spec 55, 600V Voltage Rating, Tin-Coated Copper, 22 AWG Wire Size, Operating Temperature Range -65 â€“ 150 °C; Alias: 7-1191561-1 55A0111-22-5

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: TE Connectivity
Cross Sectional Area: 0.33 mm²
Sheath Colour: Green
American Wire Gauge: 22 AWG
Cable Shape: Single Core
Core Strands: 19/0.16 mm
Length: 100m
Insulation material: ETFE, Fluoropolymer
Outer Diameter: 1.09mm
Voltage Rating: 600 V

Maximum Operating Temperature: +150°C
Minimum Operating Temperature: -65°C
Conductor Material: Copper
Cable Type: Harsh Environment
Standards Met: NEMA-WC-27500, SAE AS22759/32-35/41 to /46
Fire Behaviour: Flame Retardant
Series: 55A
Insulation Wall Thickness: 0.1016mm
Size of Strands: 0.16 mm
Number of Strands: 19
