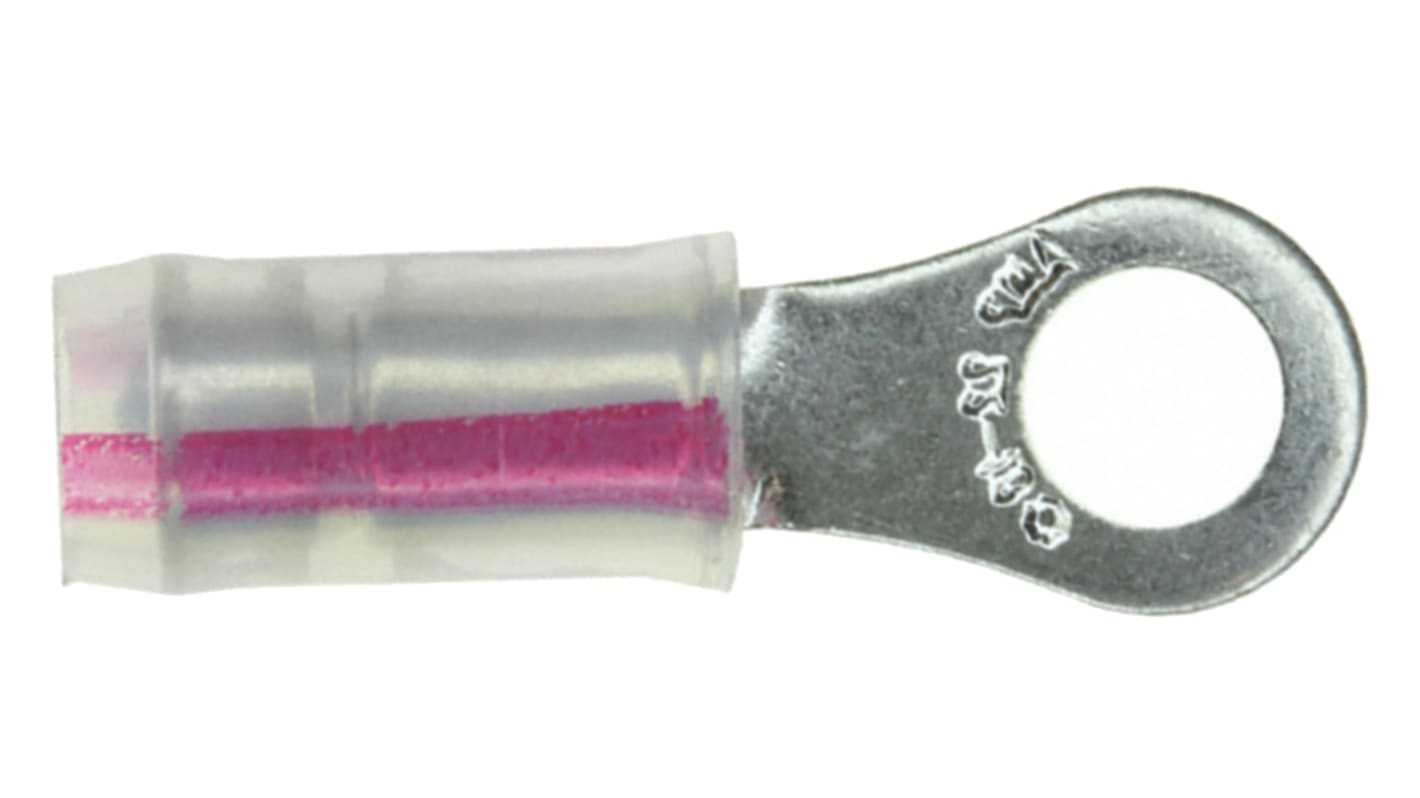

Te-connectivity Ring Terminals 53407-1

AED 4,588.79

Sale Sold out

Shipping calculated at checkout.

Quantity

Te-connectivity, Closed Ring Tongue Terminal, 22 AWG, #6 / M3.5 Stud Size, 3.68 mm [.145 in] Stud Diameter, Closed Barrel, Straight, Tin-Lead, PIDG; Alias: PIDG PVF2 R 22-16COM22-18MIL 6

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: TE Connectivity
Series: PIDG
Insulation: Insulated
Insulation Material: PVDF
Inner Ring Diameter: 3.68mm
Outer Ring Diameter: 6.35mm
Minimum Wire Size mm²: 0.26mm²
Maximum Wire Size mm²: 1.65mm²
Maximum Wire Size (mm²): 1.65mm²
Minimum Wire Size (mm²): 0.26mm²

Minimum Wire Size AWG: 22AWG
Maximum Wire Size AWG: 16AWG
Minimum Wire Size (AWG): 22AWG
Maximum Wire Size (AWG): 16AWG
Stud Size: M3.5 (#6)
Colour: Natural
Contact Material: Copper
Contact Plating: Tin
Thickness: 0.79mm
Overall Length: 19.86mm
