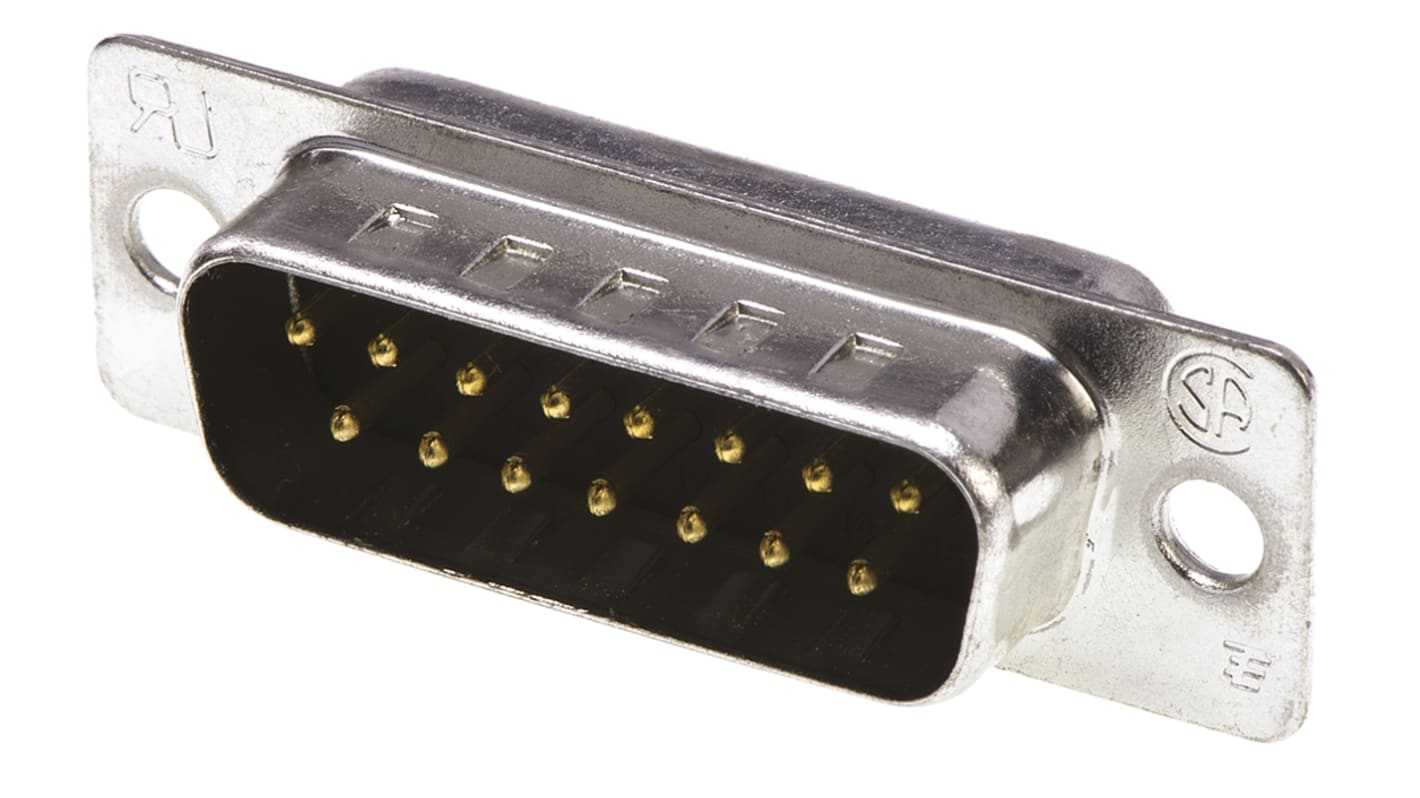

Te-connectivity D Sub Connectors 5-747908-2

Te-connectivity D Sub Connectors 5-747908-2

SKU5-747908-2BrandTe-connectivity
Regular price AED 19.29
Regular price Sale price AED 19.29
Sale Sold out
Shipping calculated at checkout.

Te-connectivity, Solder D-Sub Connectors, Plug, Cable-to-Board, 15 Position, Contact Size Size 20, 2 Connector Shell Size, Mating Retention Alias: 15 Plug Solder Cup, Gold Flash

View full details
  • Brand: TE Connectivity
  • Number Of Contacts: 15
  • Gender: Male
  • Body Orientation: Straight
  • Mounting Type: Panel Mount
  • Pitch: 2.77mm
  • D Connector Type: Standard D-Sub
  • Termination Method: Solder
  • D-Sub Shell Size: A
  • Current Rating: 3A
  • Housing Material: Steel
  • Voltage Rating: 250.0 V
  • Length: 39.2mm
  • Width: 12.5mm
  • Depth: 15.45mm
  • Dimensions: 39.2 x 12.5 x 15.45mm
  • Series: AMPLIMITE HD-20
  • Contact Plating: Gold over Nickel
  • Contact Material: Brass
  • Minimum Operating Temperature: -55.0°C
  • Maximum Operating Temperature: +105°C
