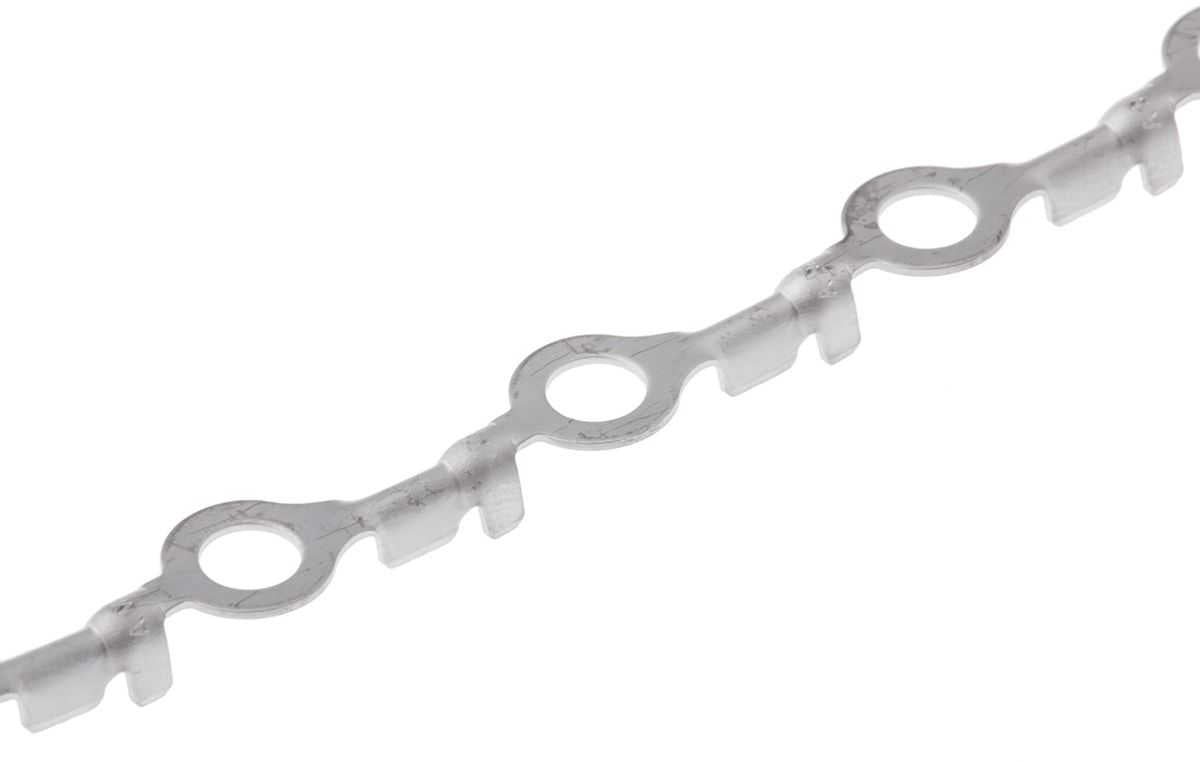

Te-connectivity Ring Terminals 42037-1

Te-connectivity Ring Terminals 42037-1

SKU42037-1BrandTe-connectivity
Regular price AED 19.16
Regular price Sale price AED 19.16
Sale Sold out
Shipping calculated at checkout.

Te-connectivity, TE Connectivity eye terminal, M4 pin, max wire size 0.9mm , 18AWG Alias: RING TERMINAL 22-18 AWG TPBR

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Brand: TE Connectivity
  • Insulation: Uninsulated
  • Inner Ring Diameter: 4.34mm
  • Outer Ring Diameter: 7.52mm
  • Minimum Wire Size mm²: 0.3mm²
  • Maximum Wire Size mm²: 0.9mm²
  • Minimum Wire Size (mm²): 0.3mm²
  • Maximum Wire Size (mm²): 0.9mm²
  • Minimum Wire Size AWG: 22AWG
  • Maximum Wire Size AWG: 18AWG
  • Minimum Wire Size (AWG): 22AWG
  • Maximum Wire Size (AWG): 18AWG
  • Stud Size: M4
  • Contact Plating: Tin
  • Contact Material: Brass
  • Thickness: 0.51mm
