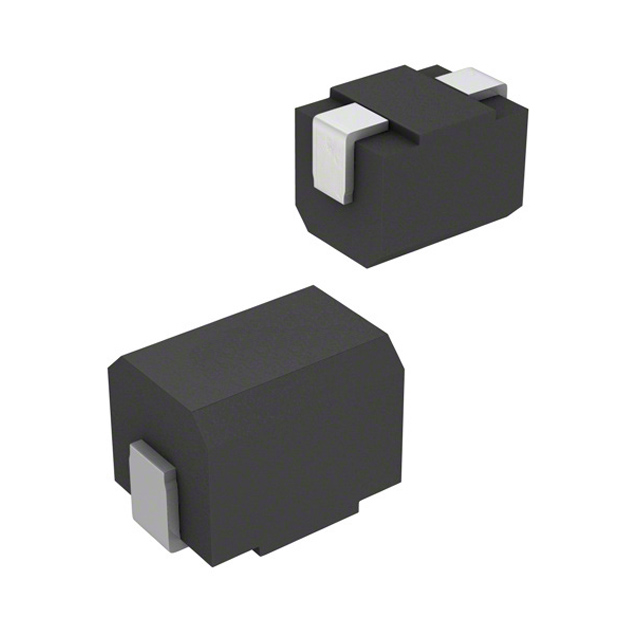

Te-connectivity Surface Mount Inductors 3613CR22M

Te-connectivity Surface Mount Inductors 3613CR22M

SKU3613CR22MBrandTe-connectivity
Regular price AED 7.21
Regular price Sale price AED 7.21
Sale Sold out
Shipping calculated at checkout.

Te-connectivity, FIXED IND 220NH 665MA 250MOHM SM Alias: 3613C 0.22UH 20%

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Brand: TE Connectivity
  • Inductance: 220 nH
  • Maximum dc Current: 665mA
  • Package/Case: 1812 (4532M)
  • Length: 4.5mm
  • Depth: 3.2mm
  • Height: 3.2mm
  • Dimensions: 4.5 x 3.2 x 3.2mm
  • Shielded: Yes
  • Tolerance: ±20%
  • Maximum DC Resistance: 250m?
  • Series: 3613C
  • Core Material: Ferrite
  • Maximum Self Resonant Frequency: 200MHz
  • Maximum Operating Temperature: +100°C
  • Moulded: Yes
  • Minimum Operating Temperature: -30°C
  • Minimum Quality Factor: 40
  • Inductor Construction: Wire-Wound
  • Country of Origin: Taiwan, Province Of China
