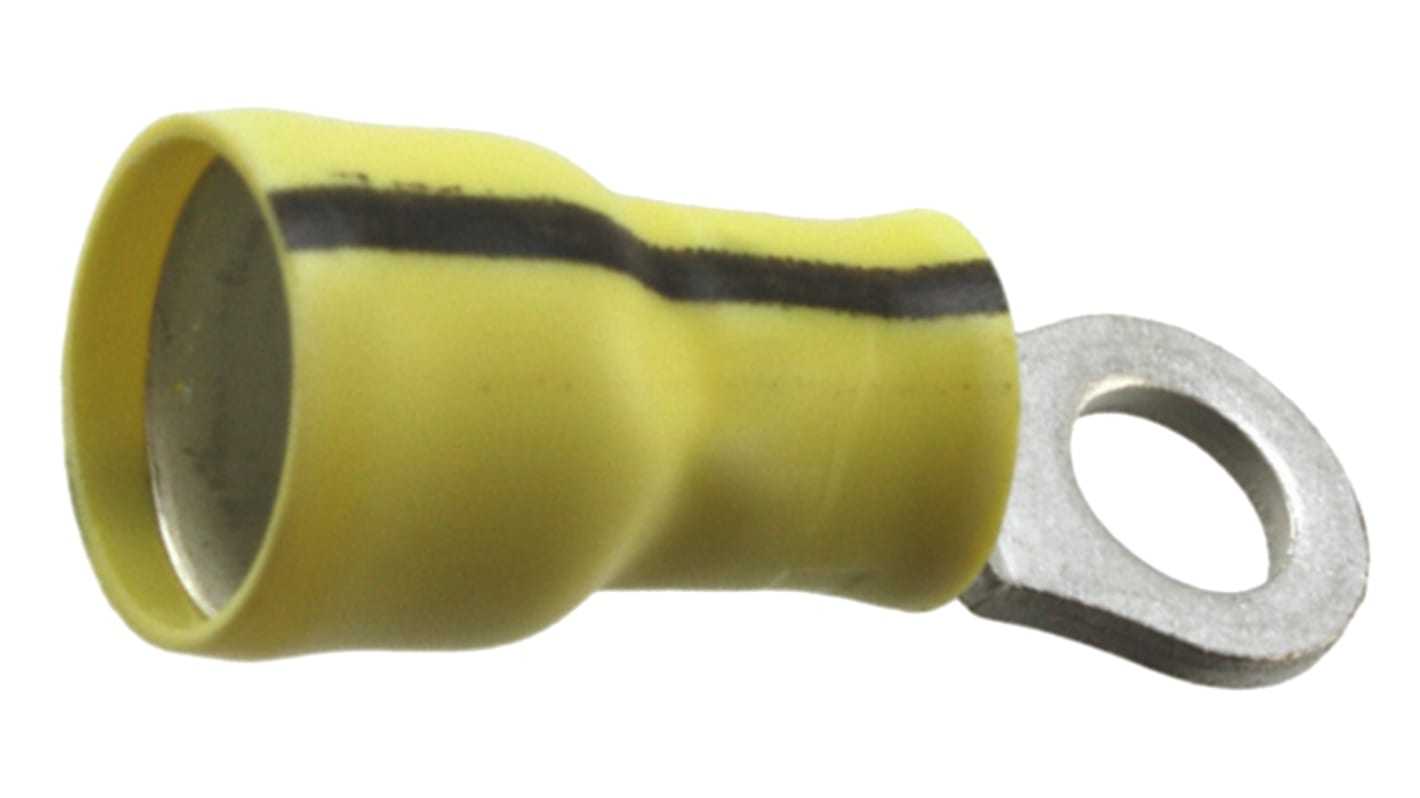

- Brand
- TE Connectivity
- Series
- PIDG
- Insulation
- Insulated
- Insulation Material
- PVC
- Inner Ring Diameter
- 5mm
- Outer Ring Diameter
- 8.71mm
- Minimum Wire Size mm²
- 1mm²
- Maximum Wire Size mm²
- 2.6mm²
- Minimum Wire Size (mm²)
- 1mm²
- Maximum Wire Size (mm²)
- 2.6mm²
ParameterValue
- Minimum Wire Size AWG
- 16AWG
- Maximum Wire Size AWG
- 14AWG
- Maximum Wire Size (AWG)
- 14AWG
- Minimum Wire Size (AWG)
- 16AWG
- Stud Size
- #10
- Colour
- Yellow
- Contact Material
- Copper
- Contact Plating
- Tin
- Thickness
- 1.22mm
- Overall Length
- 28.83mm
ParameterValue
