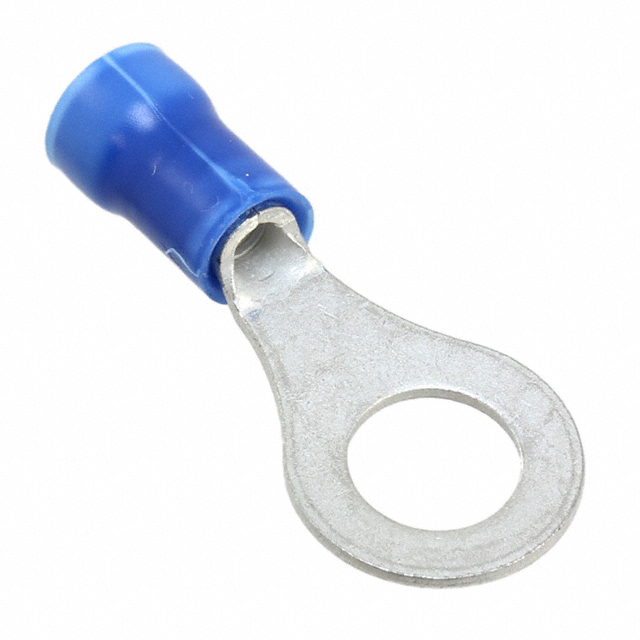

Te-connectivity Ring Terminals 342145-1

Te-connectivity Ring Terminals 342145-1

SKU342145-1BrandTe-connectivity
Regular price AED 823.34
Regular price Sale price AED 823.34
Sale Sold out
Shipping calculated at checkout.

Te-connectivity, TE Connectivity Insulated loop terminal, M6 pin, max wire dimens. 2.5mm , 14AWG, Blue Alias: 16-14 F.E.P.G. RING TONGUE NO.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Brand: TE Connectivity
  • Series: PLASTI-GRIP
  • Insulation: Insulated
  • Insulation Material: Vinyl
  • Inner Ring Diameter: 6mm
  • Outer Ring Diameter: 11.9mm
  • Maximum Wire Size mm²: 2.5mm²
  • Minimum Wire Size mm²: 1mm²
  • Maximum Wire Size AWG: 14AWG
  • Minimum Wire Size AWG: 16AWG
  • Stud Size: M6
  • Colour: Blue
  • Contact Material: Copper
  • Contact Plating: Tin
  • Overall Length: 27mm
