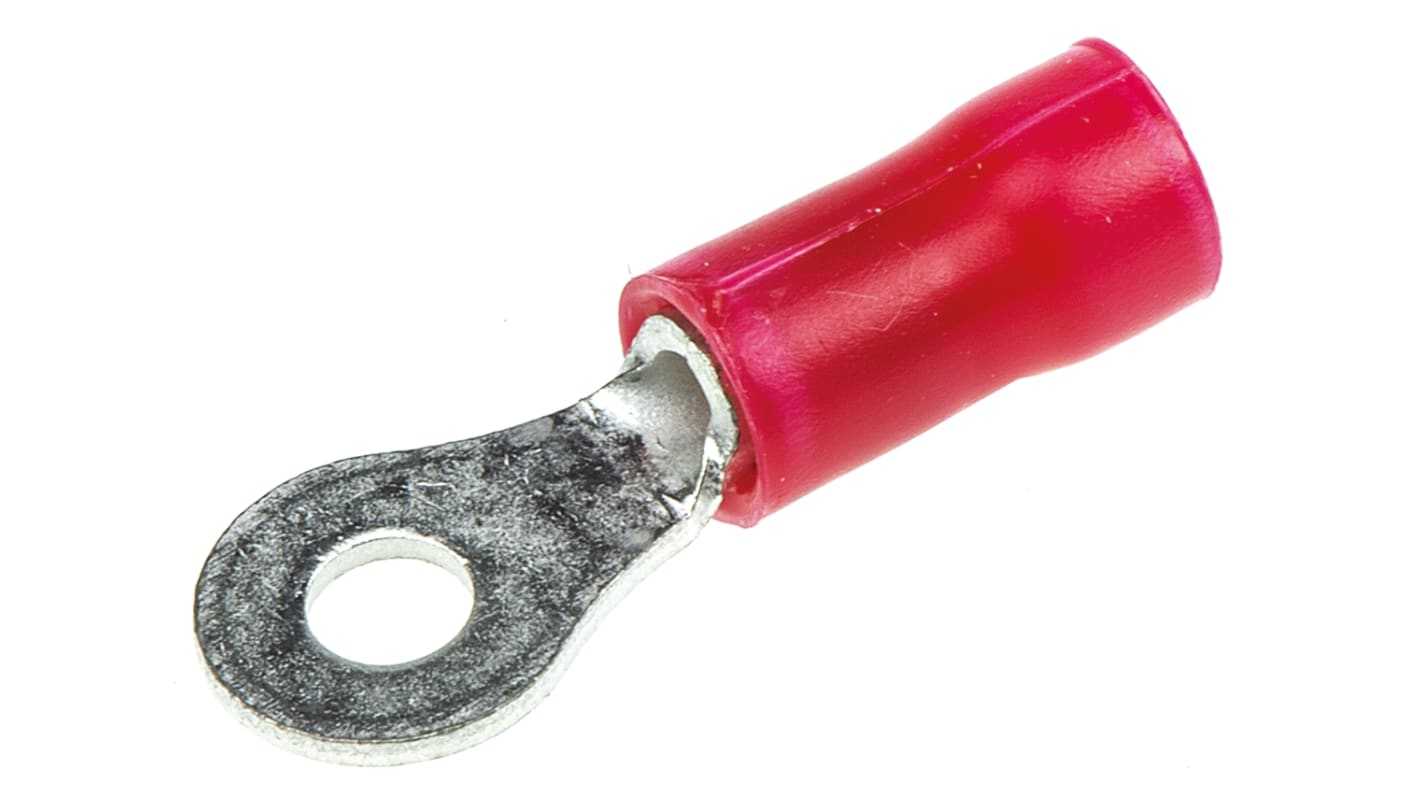

Te-connectivity Ring Terminals 34143

AED 13.76

Sale Sold out

Shipping calculated at checkout.

Quantity

Te-connectivity, Closed Ring Tongue Terminal, 22 AWG, M2.5 / #4 Stud Size, 3.02 mm [.119 in] Stud Diameter, Closed Barrel, Straight, Tin, PLASTI-GRIP; Alias: 063530-000, AMPS-0-0034143-0 PG R 22-16 COMM 22-18 MIL 4

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: TE Connectivity
Series: PLASTI-GRIP
Insulation: Insulated
Insulation Material: Vinyl
Inner Ring Diameter: 3.02mm
Outer Ring Diameter: 7.14mm
Minimum Wire Size mm²: 0.26mm²
Maximum Wire Size mm²: 1.65mm²
Minimum Wire Size (mm²): 0.26mm²
Maximum Wire Size (mm²): 1.65mm²
Minimum Wire Size AWG: 22AWG

Maximum Wire Size AWG: 16AWG
Maximum Wire Size (AWG): 16AWG
Minimum Wire Size (AWG): 22AWG
Stud Size: 2.84mm
Colour: Red
Contact Plating: Tin
Contact Material: Copper
Thickness: 0.79mm
Overall Length: 20.55mm
Country of Origin: United States
