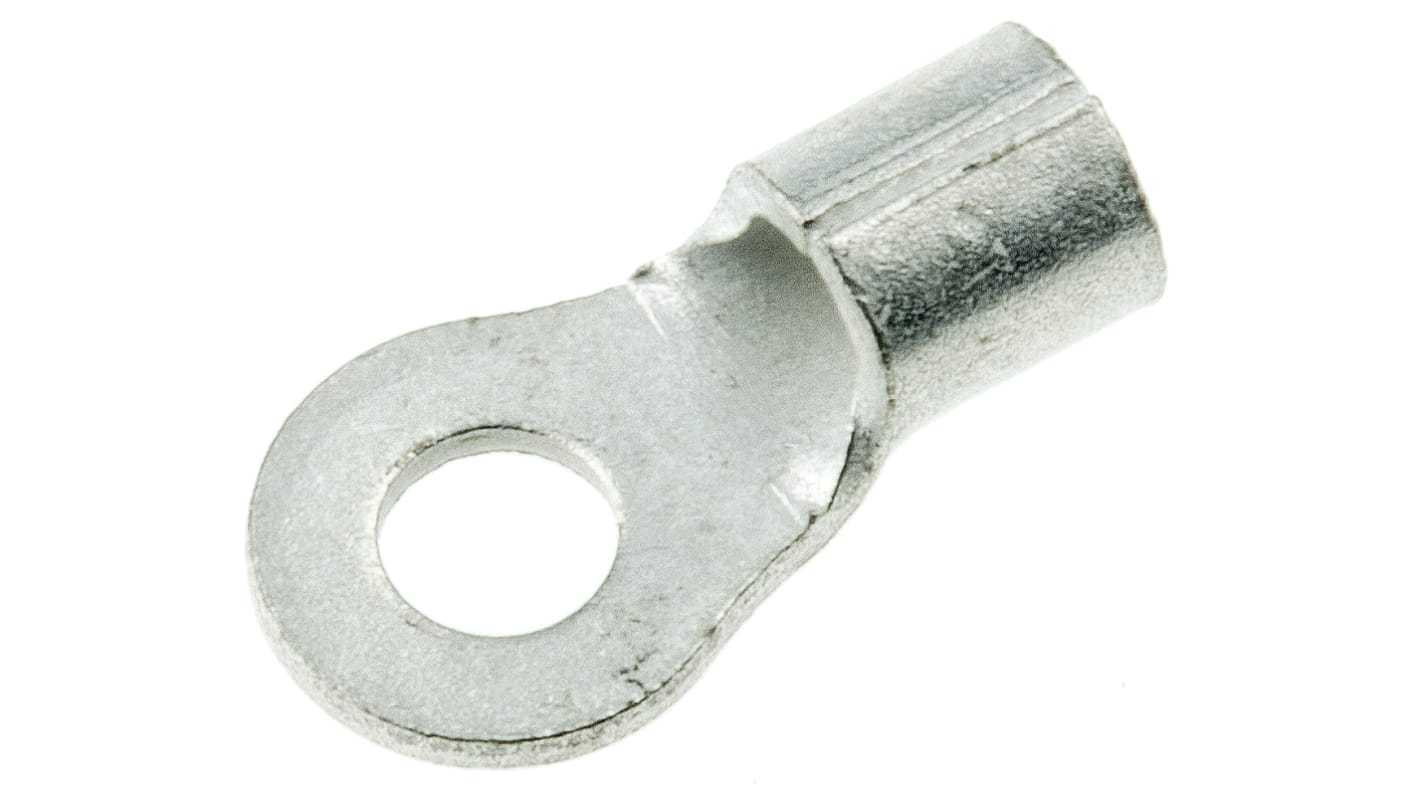

- Brand
- TE Connectivity
- Series
- SOLISTRAND
- Insulation
- Uninsulated
- Inner Ring Diameter
- 3.02mm
- Outer Ring Diameter
- 6.35mm
- Minimum Wire Size mm²
- 1mm²
- Maximum Wire Size mm²
- 2.6mm²
- Maximum Wire Size (mm²)
- 2.6mm²
- Minimum Wire Size (mm²)
- 1mm²
ParameterValue
- Minimum Wire Size AWG
- 16AWG
- Maximum Wire Size AWG
- 14AWG
- Maximum Wire Size (AWG)
- 14AWG
- Minimum Wire Size (AWG)
- 16AWG
- Stud Size
- 2.84mm
- Contact Plating
- Tin
- Contact Material
- Copper
- Overall Length
- 12.2mm
ParameterValue
