Te-connectivity Ring Terminals 33466

AED 2.60

Sale Sold out

Shipping calculated at checkout.

Quantity

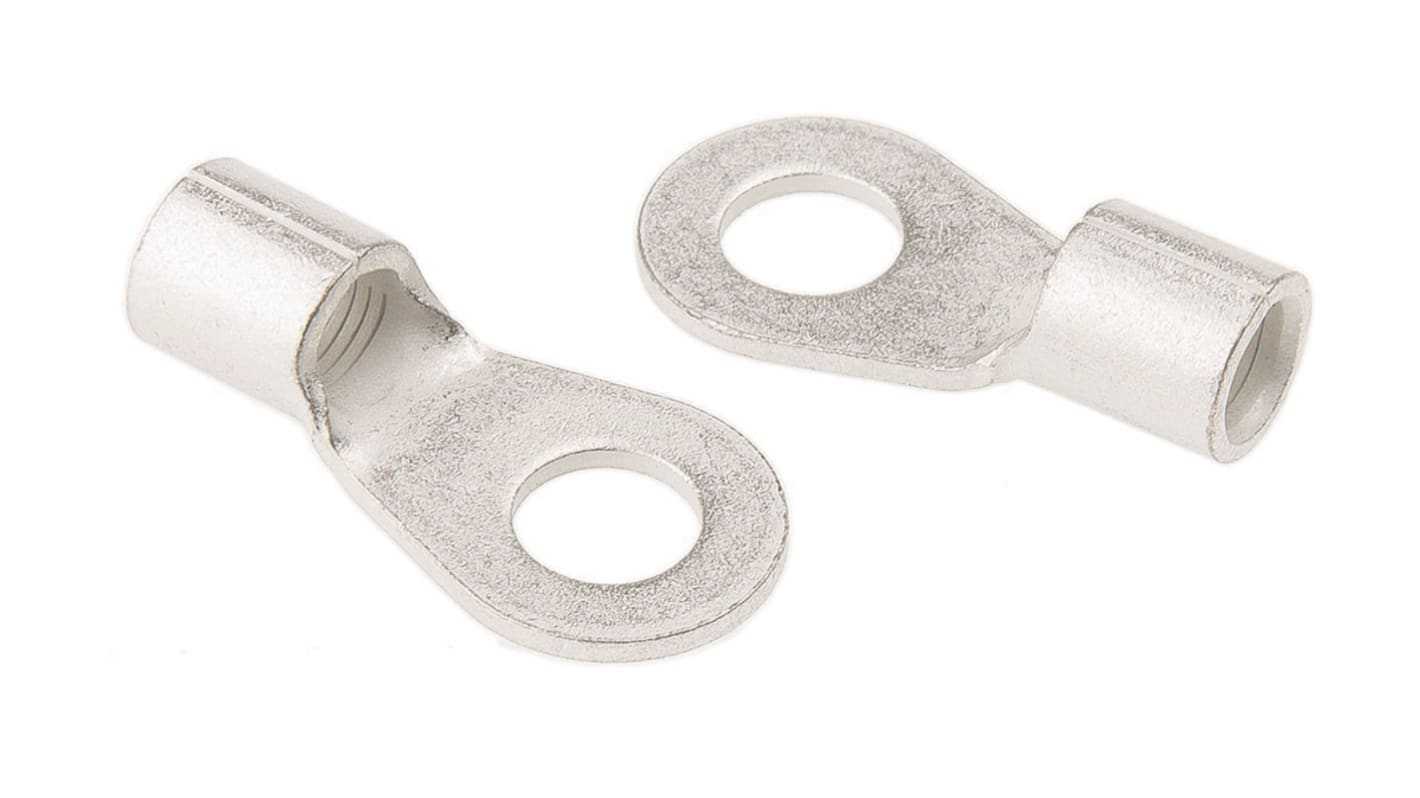

Te-connectivity, Closed Ring Tongue Terminal, 6 AWG, M8 / 5/16 Stud Size, 8.33 mm [.328 in] Stud Diameter, Closed Barrel, Straight, Tin, Uninsulated; Alias: 1262493, 320000100242, 495972-000, AMPS-0-0033466-0 TERMINAL,SOLIS R 6 5/16

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: TE Connectivity
Series: SOLISTRAND
Insulation: Uninsulated
Inner Ring Diameter: 8.33mm
Outer Ring Diameter: 15.88mm
Minimum Wire Size mm²: 10.5mm²
Maximum Wire Size mm²: 16.8mm²
Maximum Wire Size (mm²): 16.8mm²
Minimum Wire Size (mm²): 10.5mm²

Minimum Wire Size AWG: 6AWG
Maximum Wire Size AWG: 6AWG
Maximum Wire Size (AWG): 6AWG
Minimum Wire Size (AWG): 6AWG
Stud Size: M8
Contact Plating: Tin
Contact Material: Copper
Thickness: 1.45mm
Overall Length: 31.65mm
