Te-connectivity Ring Terminals 330301

AED 897.10

Sale Sold out

Shipping calculated at checkout.

Quantity

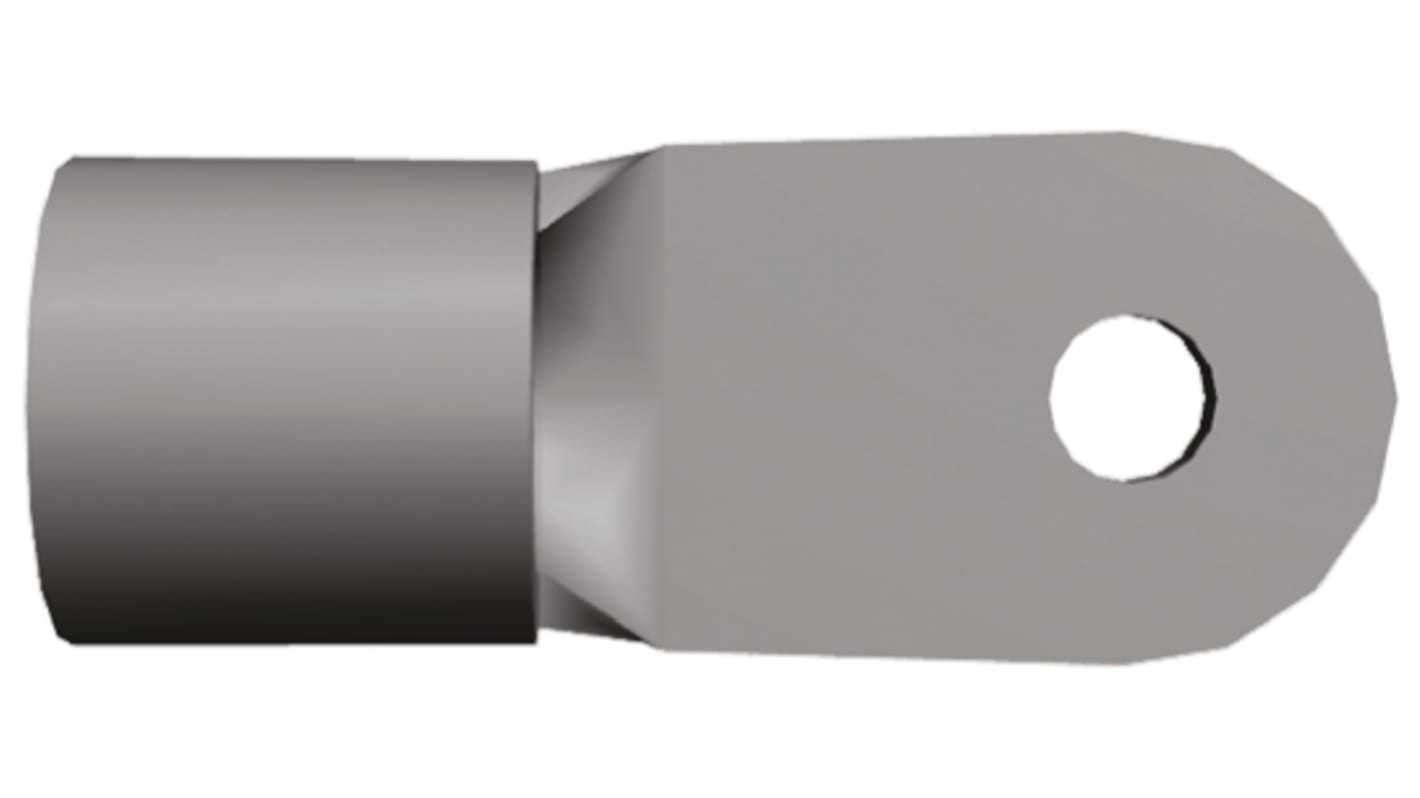

Te-connectivity, Closed Ring Tongue Terminal, 2 AWG, #10 Stud Size, 5 mm [.197 in] Stud Diameter, Closed Barrel, Straight, Tin, Uninsulated; Alias: TERMINAL,SOLIS R 2 10

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: TE Connectivity
Series: SOLISTRAND
Insulation: Uninsulated
Inner Ring Diameter: 5mm
Outer Ring Diameter: 15.87mm
Minimum Wire Size mm²: 26.7mm²
Maximum Wire Size mm²: 42.4mm²
Maximum Wire Size (mm²): 42.4mm²
Minimum Wire Size (mm²): 26.7mm²
Minimum Wire Size AWG: 2AWG

Maximum Wire Size AWG: 2AWG
Minimum Wire Size (AWG): 2AWG
Maximum Wire Size (AWG): 2AWG
Stud Size: M5 (#10)
Contact Plating: Tin
Contact Material: Copper
Thickness: 1.78mm
Overall Length: 38.79mm
Country of Origin: United States
