Te-connectivity Ring Terminals 325301

AED 1,007.87

Sale Sold out

Shipping calculated at checkout.

Quantity

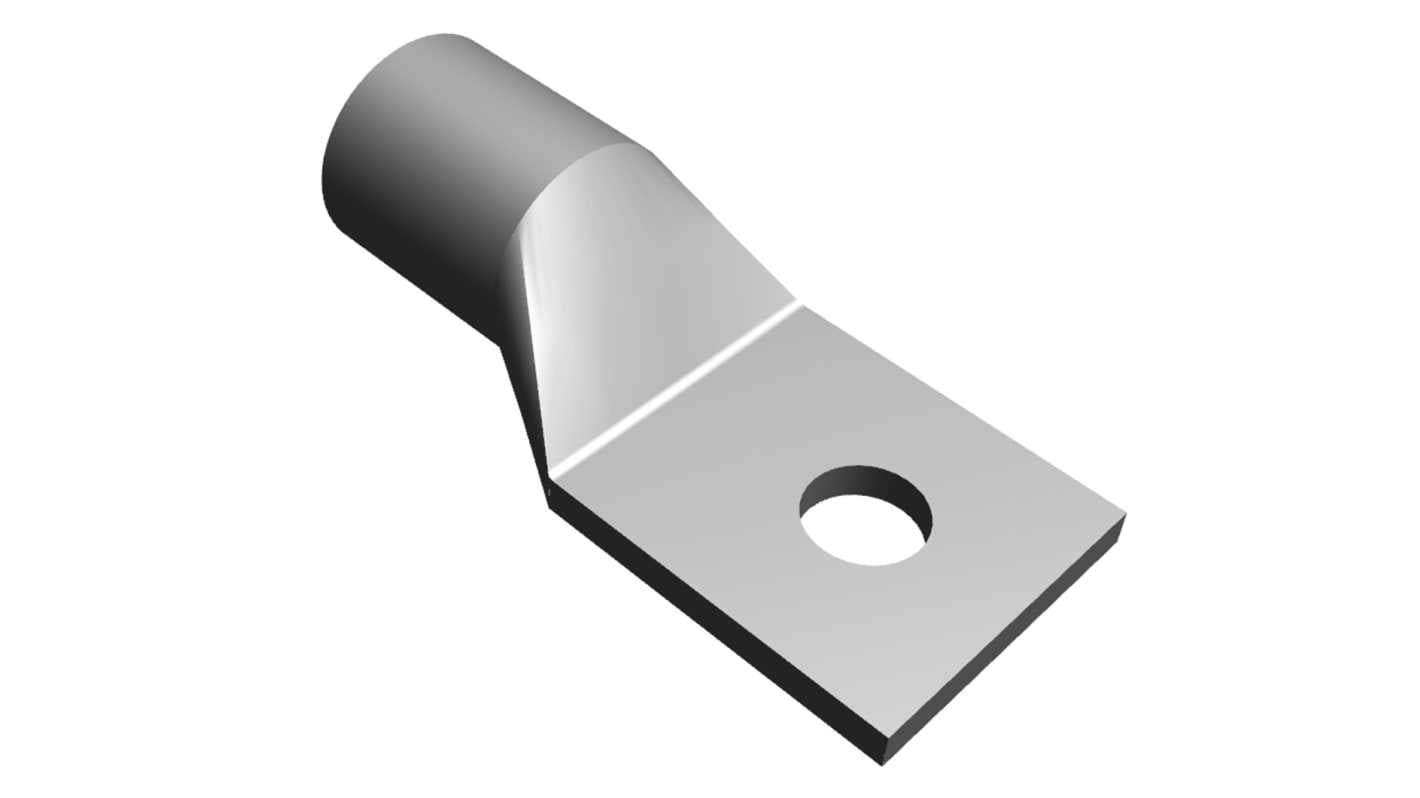

Te-connectivity, Rectangular Tongue Terminal, 0 AWG, 1/4 / M6 Stud Size, 6.73 mm [.265 in] Stud Diameter, Closed Barrel, Straight, Tin, Uninsulated, AMPOWER; Alias: TERMINAL,AMPOWER 1/0 1/4

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: TE Connectivity
Series: AMPOWER
Insulation: Uninsulated
Outer Ring Diameter: 22.1mm
Inner Ring Diameter: 6.73mm
Minimum Wire Size mm²: 42.4mm²
Maximum Wire Size mm²: 60.5mm²

Minimum Wire Size AWG: 1/0AWG
Maximum Wire Size AWG: 1/0AWG
Stud Size: M6 (1/4)
Contact Plating: Tin
Contact Material: Copper
Thickness: 2.5mm
Overall Length: 50mm
