Te-connectivity Ring Terminals 324615

AED 17.84

Sale Sold out

Shipping calculated at checkout.

Quantity

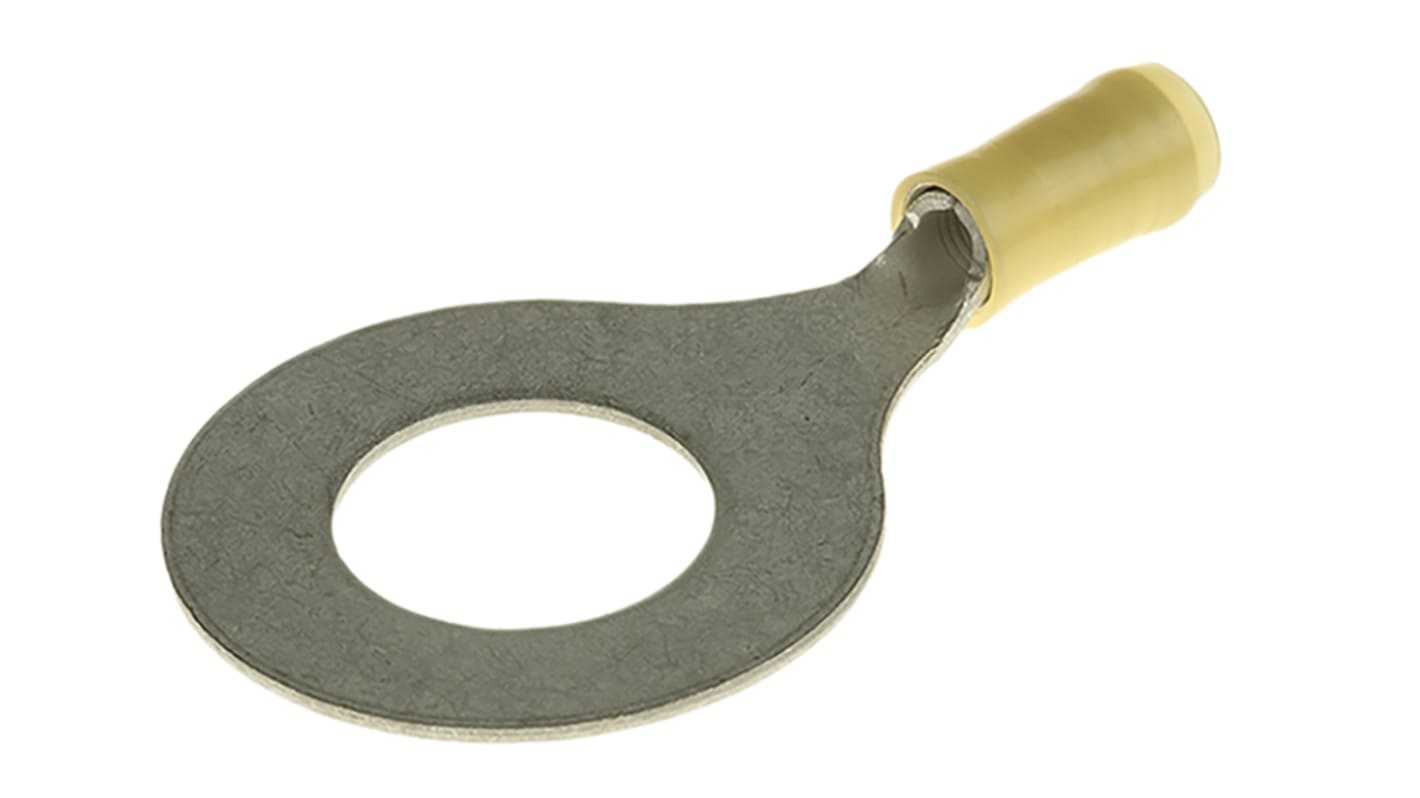

Te-connectivity, Closed Ring Tongue Terminal, 12 â€“ 10 AWG, M16 / 5/8 Stud Size, 16.66 mm [.656 in] Stud Diameter, Closed Barrel, Straight, Tin, PIDG Alias: TERMINAL,PIDG R 12-10 5/8

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: TE Connectivity
Series: PIDG
Insulation: Insulated
Insulation Material: Nylon
Inner Ring Diameter: 16.66mm
Outer Ring Diameter: 31.75mm
Minimum Wire Size mm²: 2.6mm²
Maximum Wire Size mm²: 6.6mm²
Minimum Wire Size (mm²): 2.6mm²
Maximum Wire Size (mm²): 6.6mm²
Minimum Wire Size AWG: 12AWG

Maximum Wire Size AWG: 10AWG
Minimum Wire Size (AWG): 12AWG
Maximum Wire Size (AWG): 10AWG
Stud Size: M16 (5/8)
Colour: Yellow
Contact Plating: Tin
Contact Material: Copper
Thickness: 1.07mm
Overall Length: 56.36mm
Country of Origin: United States
