Te-connectivity Ring Terminals 323784

AED 6.06

Sale Sold out

Shipping calculated at checkout.

Quantity

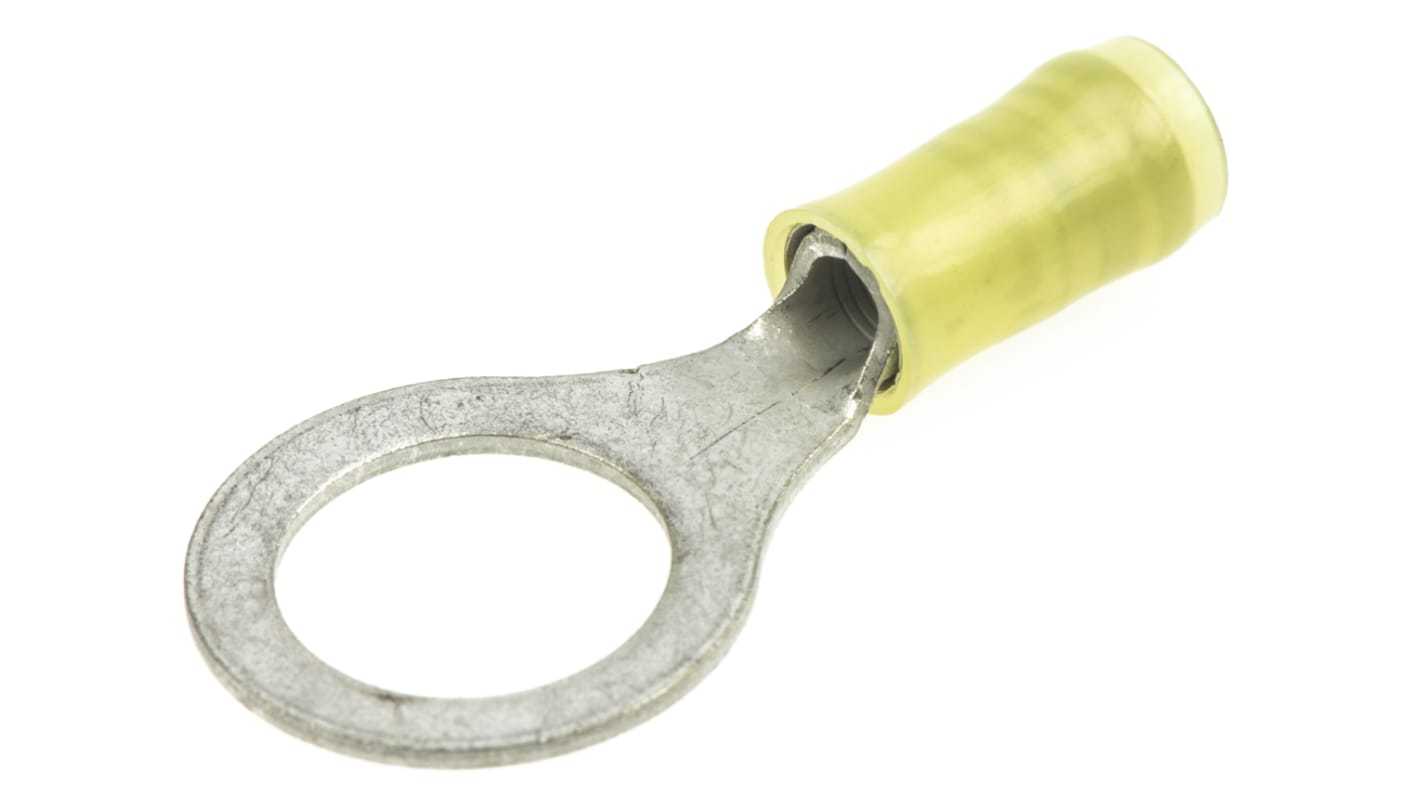

Te-connectivity, TE Connectivity Insulated loop terminal, M12 pin, max wire dimens. 6.6mm , 10AWG, Yellow Alias: TERMINAL,PIDG R 12-10 1/2

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: TE Connectivity
Series: PIDG
Insulation: Insulated
Insulation Material: Nylon
Inner Ring Diameter: 13.08mm
Outer Ring Diameter: 19.05mm
Minimum Wire Size mm²: 2.6mm²
Maximum Wire Size mm²: 6.6mm²
Maximum Wire Size (mm²): 6.6mm²
Minimum Wire Size (mm²): 2.6mm²
Minimum Wire Size AWG: 12AWG

Maximum Wire Size AWG: 10AWG
Maximum Wire Size (AWG): 10AWG
Minimum Wire Size (AWG): 12AWG
Stud Size: M12
Colour: Yellow
Contact Plating: Tin
Contact Material: Copper
Thickness: 1.02mm
Overall Length: 40.48mm
Country of Origin: United States
