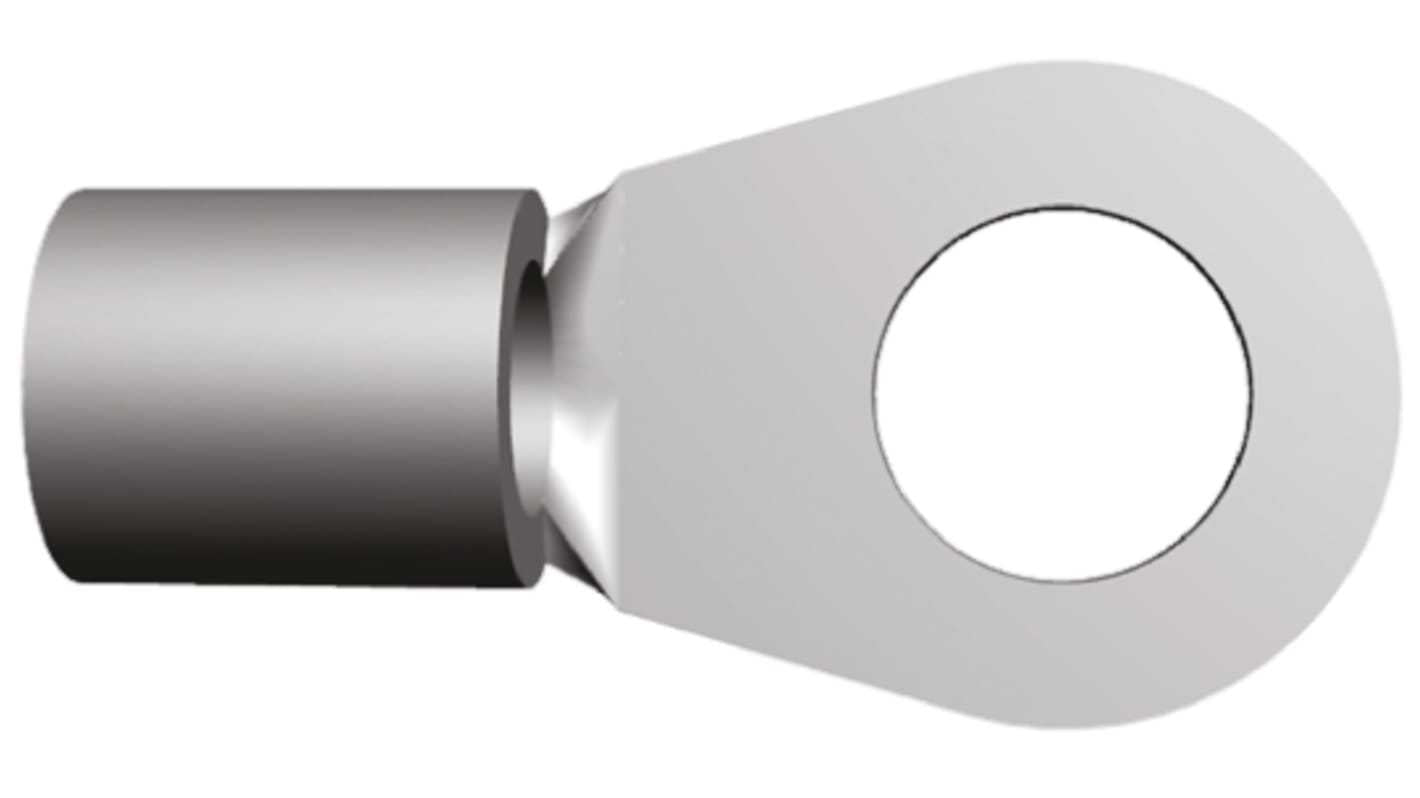

Te-connectivity Ring Terminals 323166

AED 5.40

Sale Sold out

Shipping calculated at checkout.

Quantity

Te-connectivity, TE Connectivity eye terminal, M6 (1/4) pin, max. wire dimens. 10.5mm , 8AWG Alias: AMP-0-0323166-0, CH2351-000 STRATO-THERM, HR 8 1/4 NIPL

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: TE Connectivity
Series: STRATO-THERM
Insulation: Uninsulated
Inner Ring Diameter: 6.73mm
Outer Ring Diameter: 11.91mm
Minimum Wire Size mm²: 6.6mm²
Maximum Wire Size mm²: 10.5mm²
Minimum Wire Size (mm²): 6.6mm²
Maximum Wire Size (mm²): 10.5mm²

Minimum Wire Size AWG: 8AWG
Maximum Wire Size AWG: 8AWG
Maximum Wire Size (AWG): 8AWG
Minimum Wire Size (AWG): 8AWG
Stud Size: M6 (1/4)
Contact Plating: Nickel
Contact Material: Copper
Thickness: 1.22mm
Overall Length: 23.7mm
