Te-connectivity Ring Terminals 323165

Te-connectivity Ring Terminals 323165

SKU323165BrandTe-connectivity
Regular price AED 4.57
Regular price Sale price AED 4.57
Sale Sold out
Shipping calculated at checkout.

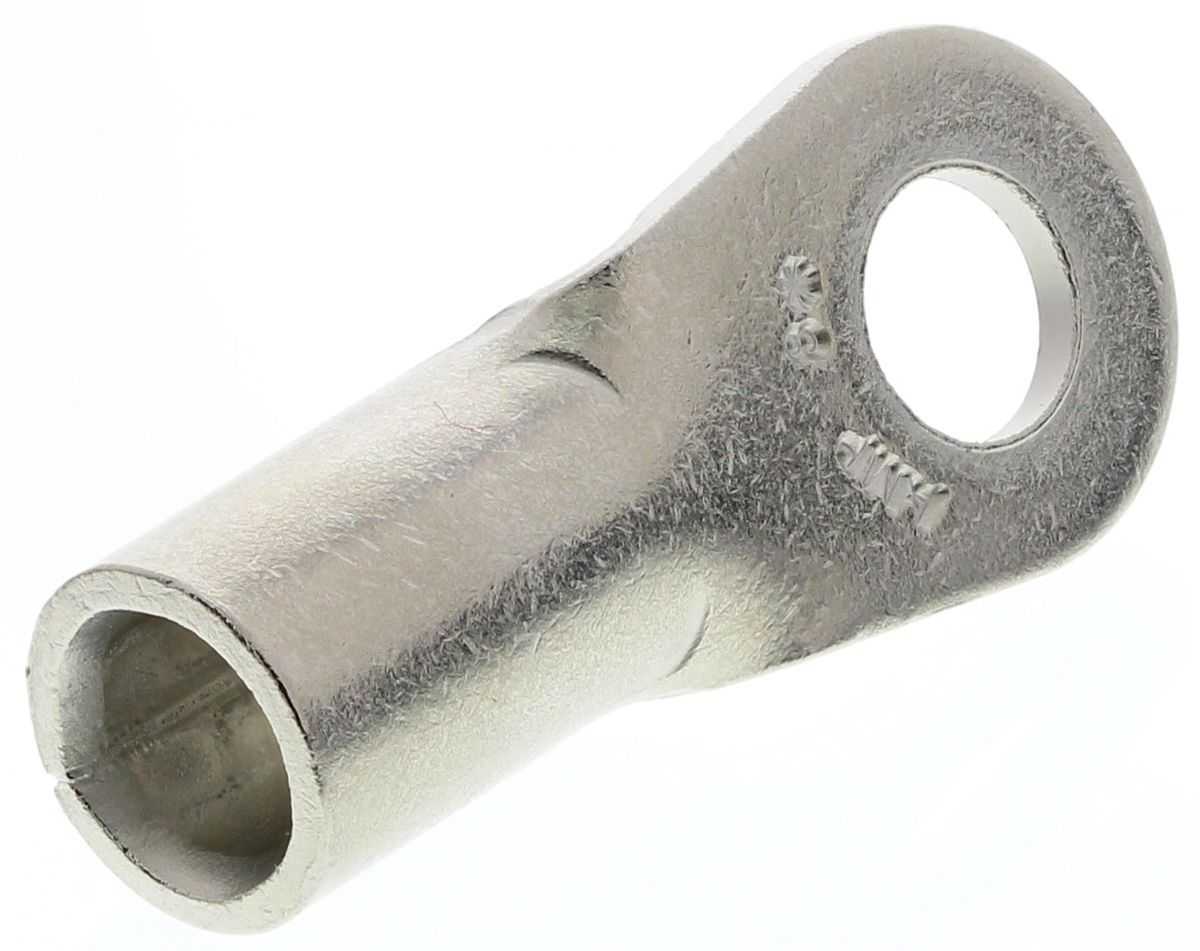

Te-connectivity, TE Connectivity eye terminal, M5 pin, max wire dimens. 10.5mm , 8AWG Alias: AMP-0-0323165-0, CH3087-000 STRATO-THERM, HR 8 10 NIPL Alias: AMP-0-0323165-0, CH3087-000 STRATO-THERM, HR 8 10 NIPL

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Brand: TE Connectivity
  • Series: STRATO-THERM
  • Insulation: Uninsulated
  • Inner Ring Diameter: 5mm
  • Outer Ring Diameter: 10.31mm
  • Minimum Wire Size mm²: 6.6mm²
  • Maximum Wire Size mm²: 10.5mm²
  • Minimum Wire Size AWG: 8AWG
  • Maximum Wire Size AWG: 8AWG
  • Stud Size: M5
  • Contact Material: Copper
  • Contact Plating: Nickel
  • Overall Length: 24.1mm
