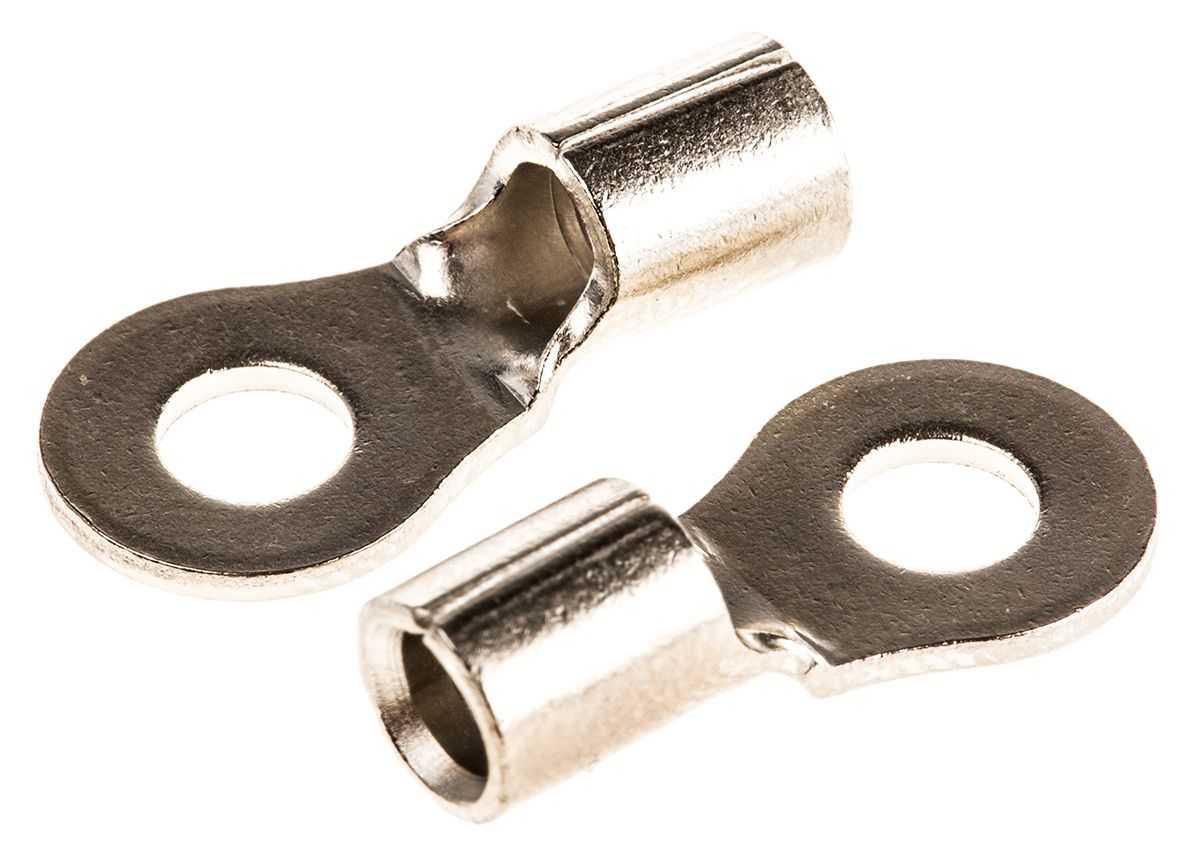

Te-connectivity Ring Terminals 323061

AED 58.93

Sale Sold out

Shipping calculated at checkout.

Quantity

Te-connectivity, TE Connectivity eye terminal, M4 pin, max wire dimens. 6.6mm , 10AWG Alias: TERMINAL,SOLIS R HR 12-10 8

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: TE Connectivity
Series: STRATO-THERM
Insulation: Uninsulated
Inner Ring Diameter: 4.34 mm
Outer Ring Diameter: 9.53 mm
Minimum Wire Size mm²: 2.6mm²
Maximum Wire Size mm²: 6.6mm²
Minimum Wire Size (mm²): 2.6mm²
Maximum Wire Size (mm²): 6.6mm²
Minimum Wire Size AWG: 12AWG

Maximum Wire Size AWG: 10AWG
Minimum Wire Size (AWG): 12AWG
Maximum Wire Size (AWG): 10AWG
Stud Size: M4
Contact Material: Copper
Contact Plating: Nickel
Thickness: 0.99mm
Overall Length: 19.43mm
Country of Origin: United States
