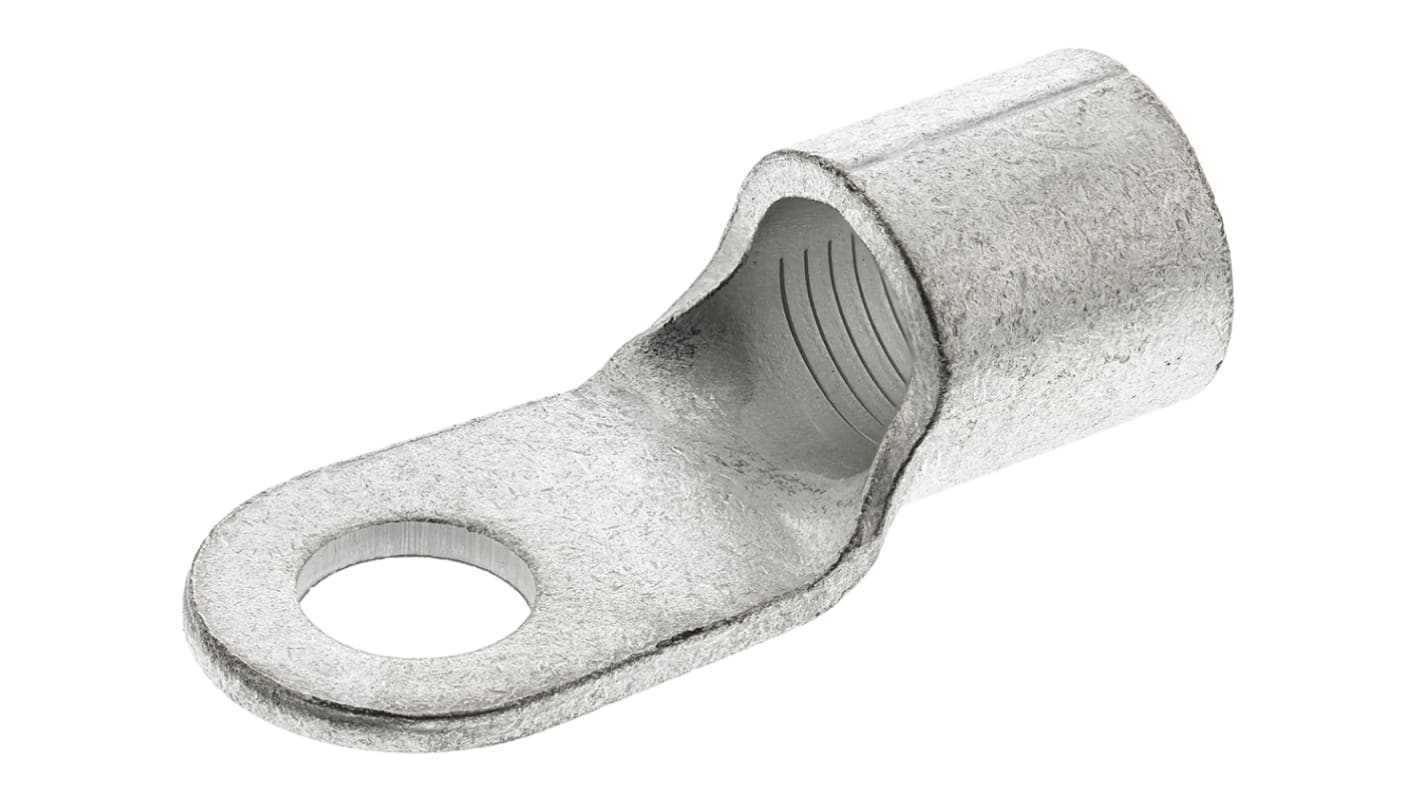

Te-connectivity Ring Terminals 322870

AED 7.66

Sale Sold out

Shipping calculated at checkout.

Quantity

Te-connectivity, TE Connectivity eye terminal, M8 pin, max wire dimens. 42.4mm , 2AWG Alias: 834896-000, AMPS-0-0322870-0 TERMINAL,SOLIS R 2 5/16

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: TE Connectivity
Series: SOLISTRAND
Insulation: Uninsulated
Inner Ring Diameter: 8.33mm
Outer Ring Diameter: 15.87mm
Minimum Wire Size mm²: 26.7mm²
Maximum Wire Size mm²: 42.4mm²
Minimum Wire Size (mm²): 26.7mm²
Maximum Wire Size (mm²): 42.4mm²

Minimum Wire Size AWG: 2AWG
Maximum Wire Size AWG: 2AWG
Maximum Wire Size (AWG): 2AWG
Minimum Wire Size (AWG): 2AWG
Stud Size: M8
Contact Plating: Tin
Contact Material: Copper
Thickness: 1.78mm
Overall Length: 38.79mm
