Te-connectivity Ring Terminals 322695

AED 17.80

Sale Sold out

Shipping calculated at checkout.

Quantity

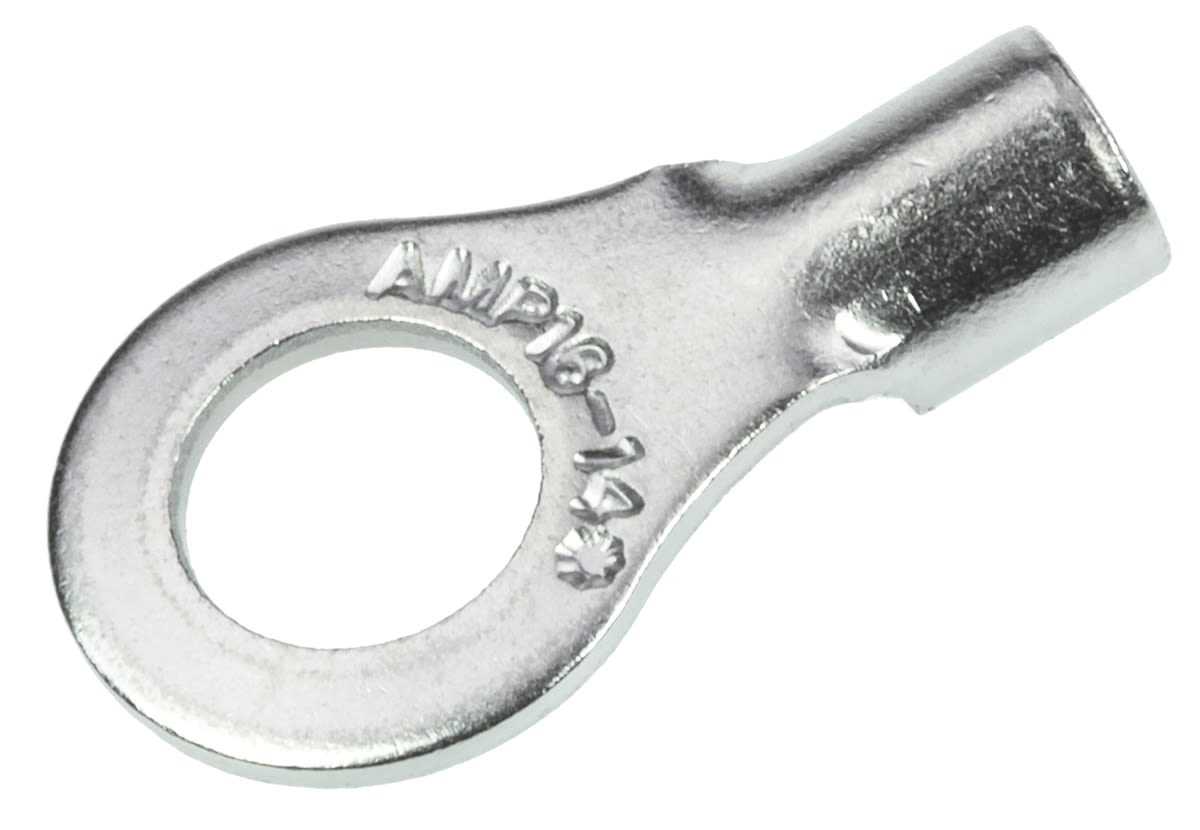

Te-connectivity, Closed Ring Tongue Terminal, 16 â€“ 14 AWG, #10 Stud Size, 5 mm [.197 in] Stud Diameter, Closed Barrel, Straight, Nickel, Uninsulated; Alias: TERMINAL,STRATO-THERM R HR 16-14 10

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: TE Connectivity
Series: STRATO-THERM
Insulation: Uninsulated
Inner Ring Diameter: 5mm
Outer Ring Diameter: 8.71mm
Minimum Wire Size mm²: 1mm²
Maximum Wire Size mm²: 2.6mm²
Minimum Wire Size (mm²): 1mm²
Maximum Wire Size (mm²): 2.6mm²

Minimum Wire Size AWG: 16AWG
Maximum Wire Size AWG: 14AWG
Maximum Wire Size (AWG): 14AWG
Minimum Wire Size (AWG): 16AWG
Stud Size: M5
Contact Plating: Nickel
Contact Material: Copper
Overall Length: 16.15mm
