Te-connectivity Ring Terminals 321828

AED 581.37

Sale Sold out

Shipping calculated at checkout.

Quantity

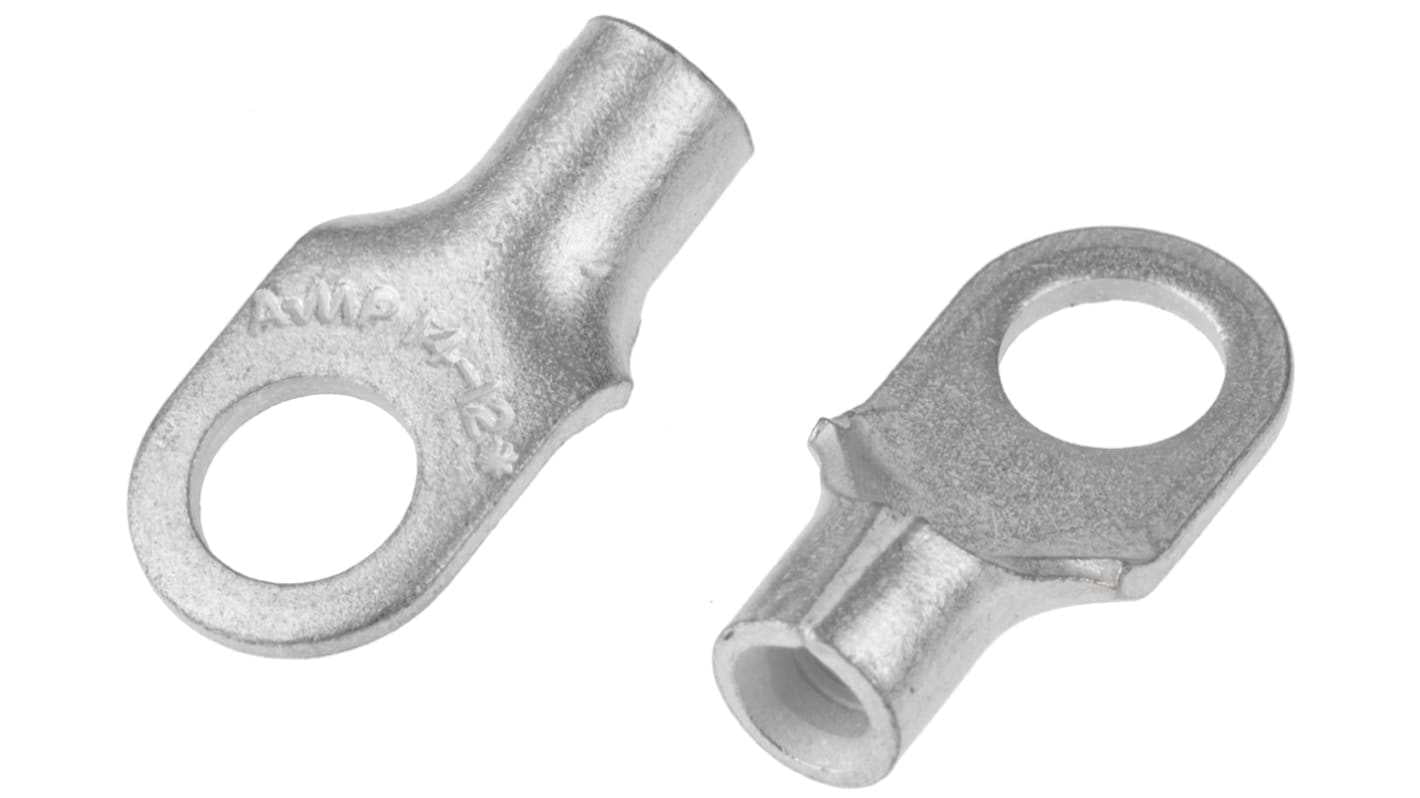

Te-connectivity, Closed Ring Tongue Terminal, 14 â€“ 12 AWG, #10 Stud Size, 5 mm [.197 in] Stud Diameter, Closed Barrel, Straight, Tin, Uninsulated; Alias: TERMINAL,SOLIS R 14-12 10

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: TE Connectivity
Series: SOLISTRAND
Insulation: Uninsulated
Outer Ring Diameter: 7.92mm
Inner Ring Diameter: 5mm
Minimum Wire Size mm²: 1.65mm²
Maximum Wire Size mm²: 4.17mm²
Minimum Wire Size (mm²): 1.65mm²
Maximum Wire Size (mm²): 4.17mm²
Minimum Wire Size AWG: 14AWG

Maximum Wire Size AWG: 12AWG
Minimum Wire Size (AWG): 14AWG
Maximum Wire Size (AWG): 12AWG
Stud Size: M5 (#10)
Contact Plating: Tin
Contact Material: Copper
Thickness: 0.97mm
Overall Length: 17.4mm
Country of Origin: United States
