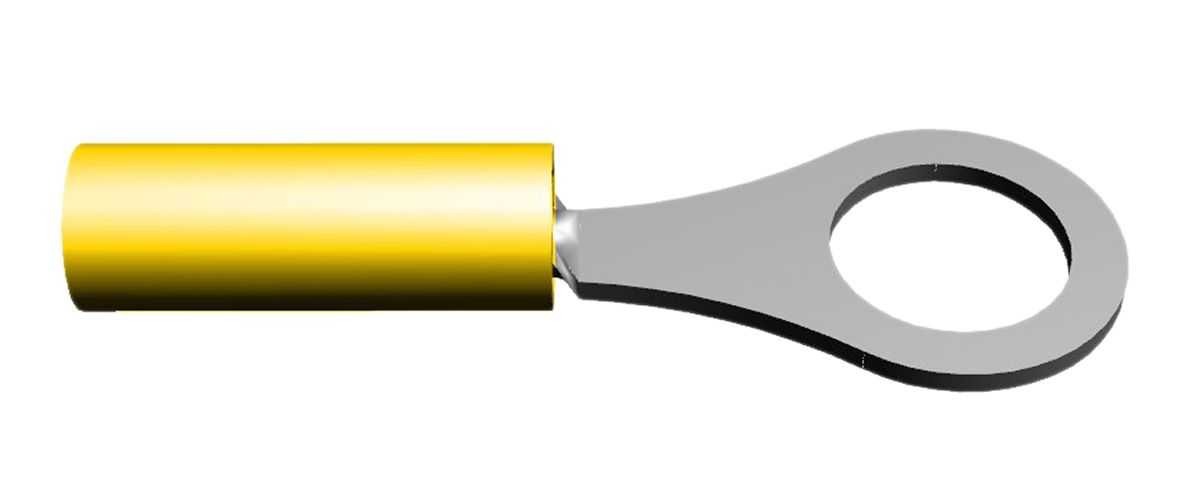

Te-connectivity Ring Terminals 321021

AED 28.23

Sale Sold out

Shipping calculated at checkout.

Quantity

Te-connectivity, TE Connectivity Insulated loop terminal, pin 8, M4, max wire dimens. 0.4mm , 22AWG, Yellow Alias: PIDG RING (26-22)

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: TE Connectivity
Series: PIDG
Insulation: Insulated
Insulation Material: PVC
Inner Ring Diameter: 4.34mm
Outer Ring Diameter: 6.35mm
Minimum Wire Size mm²: 0.1mm²
Maximum Wire Size mm²: 0.4mm²
Maximum Wire Size (mm²): 0.4mm²
Minimum Wire Size (mm²): 0.1mm²
Maximum Wire Size AWG: 22AWG

Minimum Wire Size AWG: 26AWG
Minimum Wire Size (AWG): 26AWG
Maximum Wire Size (AWG): 22AWG
Stud Size: 8, M4
Colour: Yellow
Contact Material: Copper
Contact Plating: Tin
Thickness: 0.79mm
Overall Length: 18.8mm
Country of Origin: United States
