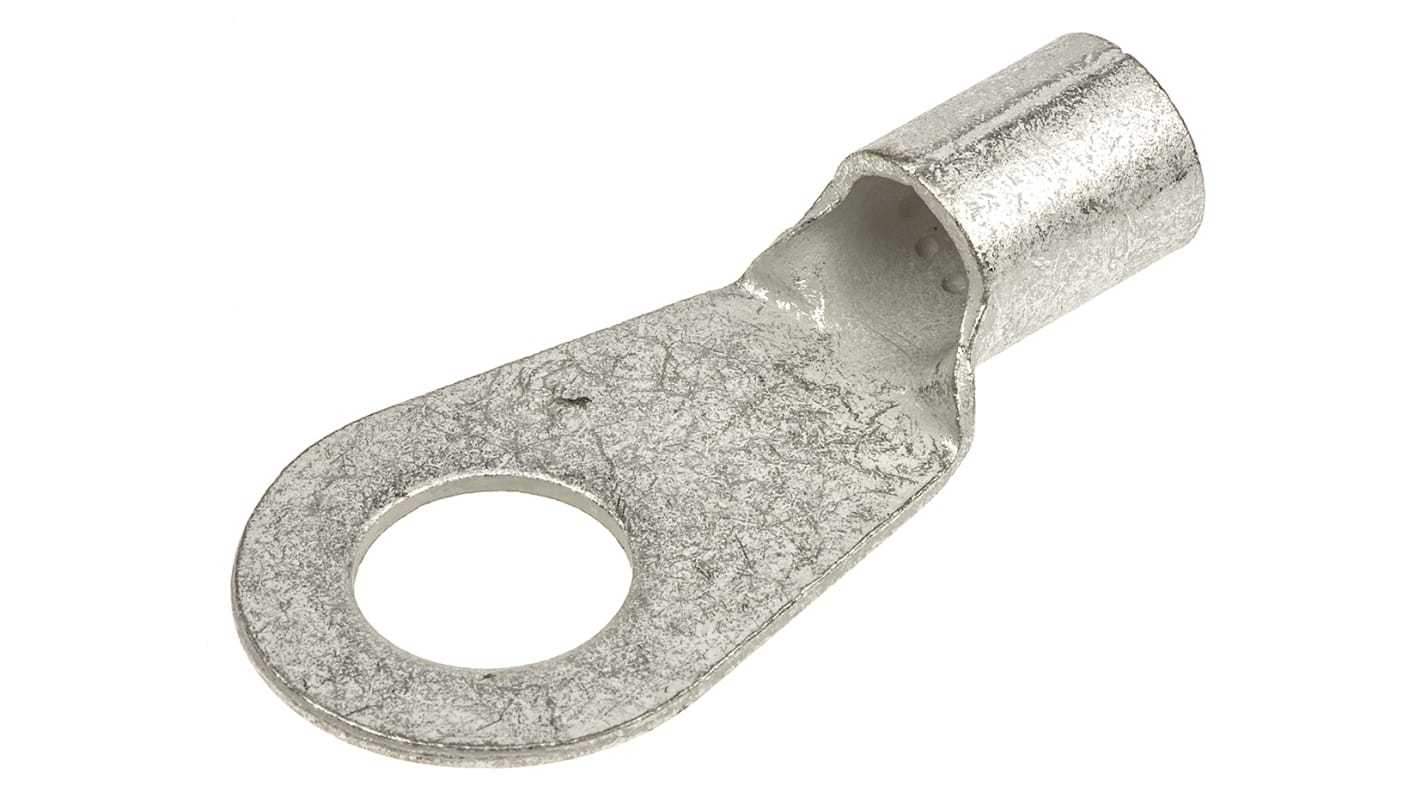

Te-connectivity Ring Terminals 320744

SKU320744BrandTe-connectivity

AED 999.51

Sale Sold out

Shipping calculated at checkout.

Quantity

Te-connectivity, TE Connectivity eye terminal, M16 pin, max wire dimens. 60.6mm , 1/0AWG Alias: TERMINAL,SOLIS R 1/0 5/8

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: TE Connectivity
Series: SOLISTRAND
Insulation: Uninsulated
Inner Ring Diameter: 0.656in
Outer Ring Diameter: 1.265in
Minimum Wire Size mm²: 42.4mm²
Maximum Wire Size mm²: 60.6mm²
Maximum Wire Size (mm²): 60.6mm²
Minimum Wire Size (mm²): 42.4mm²
Minimum Wire Size AWG: 1/0AWG

Maximum Wire Size AWG: 1/0AWG
Maximum Wire Size (AWG): 1/0AWG
Minimum Wire Size (AWG): 1/0AWG
Stud Size: M16
Contact Plating: Tin
Contact Material: Copper
Thickness: 0.07in
Overall Length: 68.02mm
Country of Origin: United States
