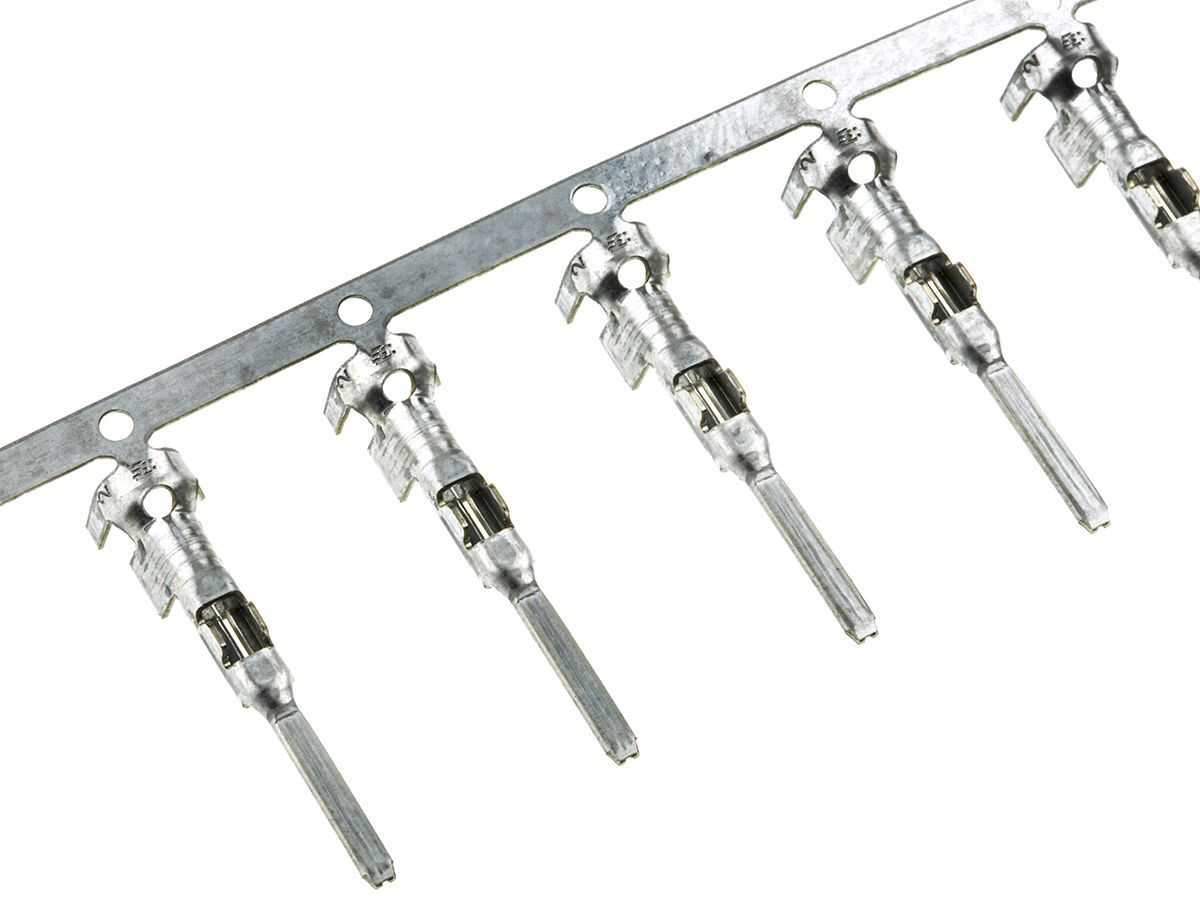

Te-connectivity Crimp Contacts 282404-1

AED 0.29

Sale Sold out

Shipping calculated at checkout.

Quantity

Te-connectivity, Automotive Terminals, Tab, Mating Tab Width 1.5 mm [.059 in], Tab Thickness .8 mm [.031 in], 22 â€“ 20 AWG Wire Size, AMP Superseal 1.5mm Series Alias: 61.355.00, 820P-36528MINI MIC SRS TAB CONT

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: TE Connectivity
Gender: Male
For Use With: AMP SUPERSEAL 1.5 Connector Housing
Series: MINI-MIC
Minimum Wire Size mm²: 0.35mm²
Minimum Wire Size (mm²): 0.35mm²
Termination Method: Crimp
Maximum Wire Size mm²: 0.5mm²
Maximum Wire Size (mm²): 0.5mm²
Minimum Wire Size AWG: 21AWG

Contact Plating: Tin
Minimum Wire Size (AWG): 21AWG
Maximum Wire Size AWG: 20AWG
Contact Material: Brass
Maximum Wire Size (AWG): 20AWG
Maximum Contact Resistance: 30m?
Minimum Operating Temperature: -40°C
Maximum Operating Temperature: +125°C
Country of Origin: Switzerland
