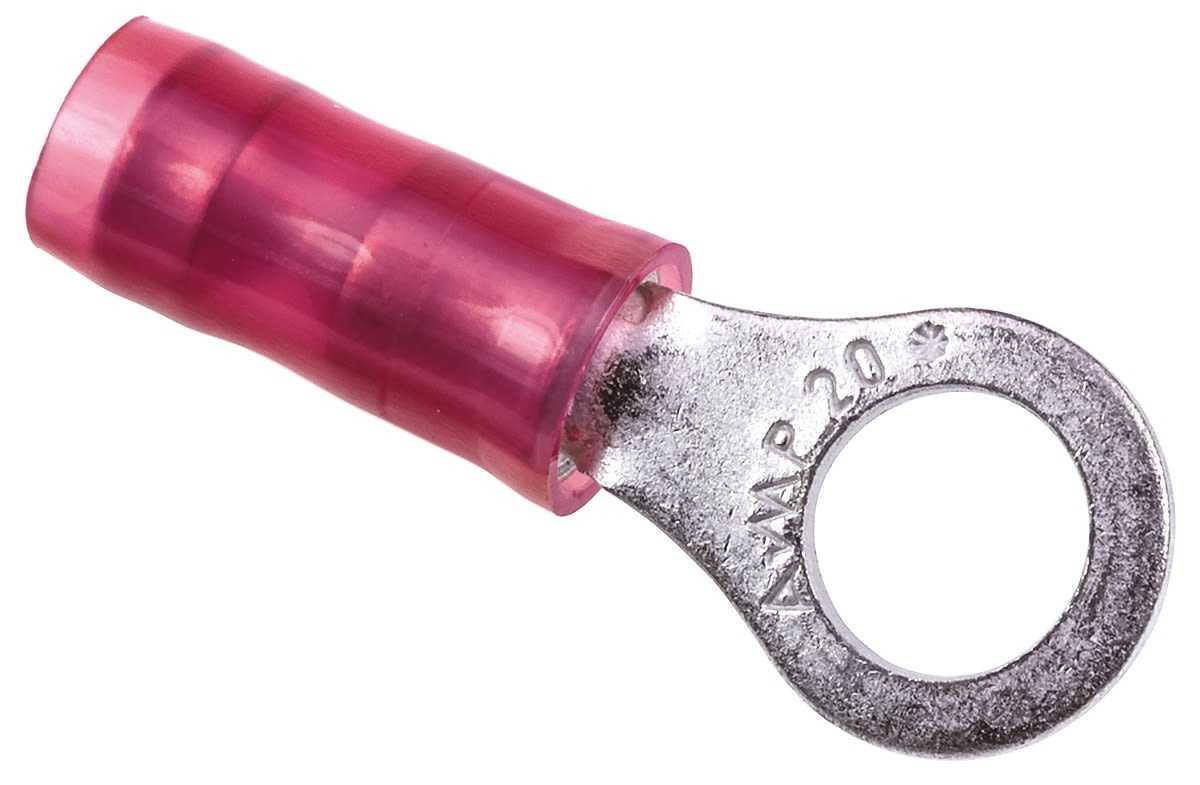

Te-connectivity Ring Terminals 2-36153-4

Te-connectivity Ring Terminals 2-36153-4

SKU2-36153-4BrandTe-connectivity
Regular price AED 2.02
Regular price Sale price AED 2.02
Sale Sold out
Shipping calculated at checkout.

Te-connectivity, TE Connectivity Insulated loop terminal, M5 pin, max wire dimens. 1.65mm , 16AWG, Red Alias: 8202607913 TERMINAL,PIDG R IR 20 10

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Brand: TE Connectivity
  • Series: PIDG
  • Insulation: Insulated
  • Insulation Material: Nylon
  • Outer Ring Diameter: 7.92mm
  • Inner Ring Diameter: 5mm
  • Minimum Wire Size mm²: 0.26mm²
  • Maximum Wire Size mm²: 1.65mm²
  • Minimum Wire Size AWG: 22AWG
  • Maximum Wire Size AWG: 16AWG
  • Stud Size: M5
  • Colour: Red
  • Contact Plating: Tin
  • Contact Material: Copper
  • Thickness: 0.79mm
  • Overall Length: 23.01mm
