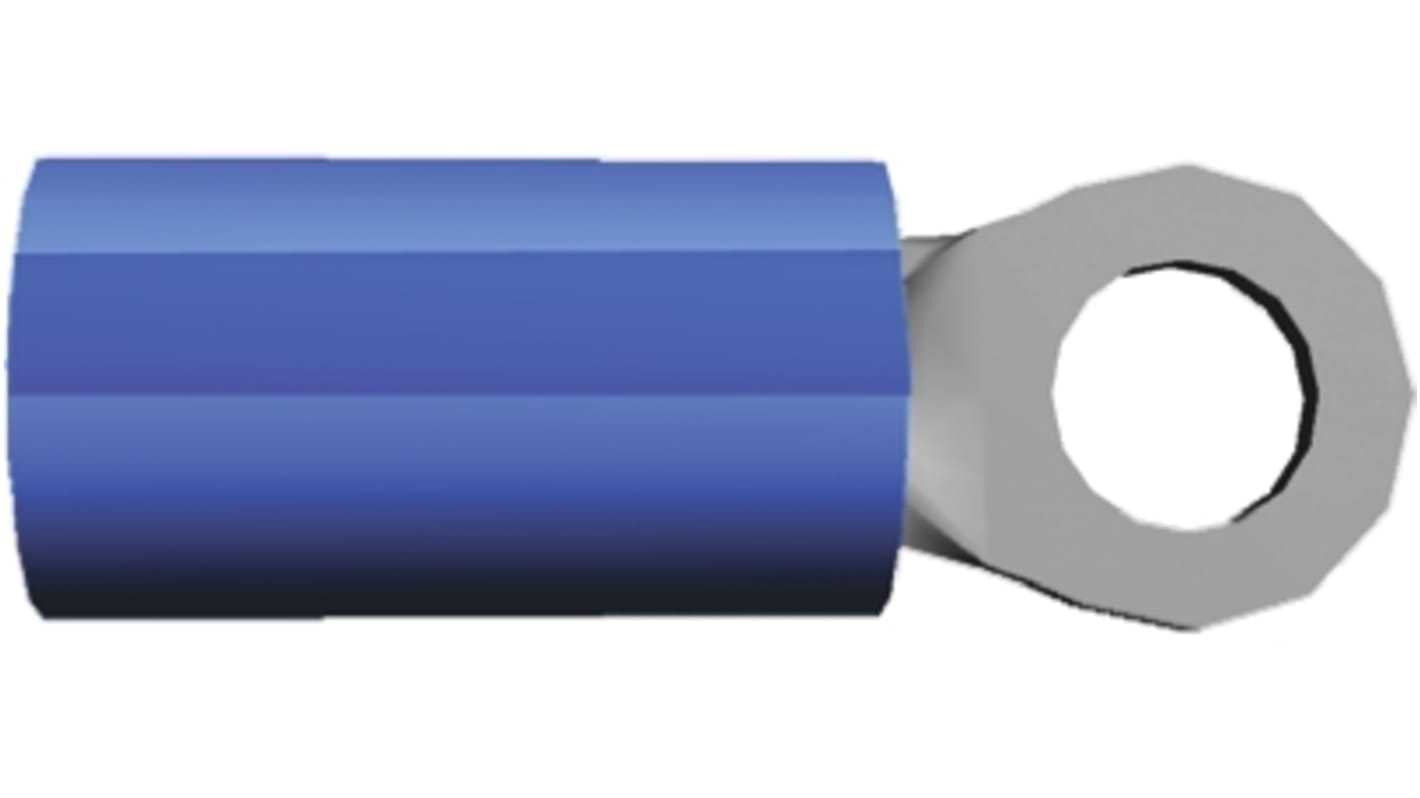

Te-connectivity Ring Terminals 2-320561-3

Te-connectivity Ring Terminals 2-320561-3

SKU2-320561-3BrandTe-connectivity
Regular price AED 3.09
Regular price Sale price AED 3.09
Sale Sold out
Shipping calculated at checkout.

Te-connectivity, TE Connectivity Insulated loop terminal, M3.5 pin, max wire dimens. 2.6mm , 14AWG, Blue Alias: TERMINAL,PIDG R IR 16 6

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Brand: TE Connectivity
  • Series: PIDG
  • Insulation: Insulated
  • Insulation Material: Nylon
  • Minimum Wire Size mm²: 1mm²
  • Maximum Wire Size mm²: 2.6mm²
  • Minimum Wire Size (mm²): 1mm²
  • Maximum Wire Size (mm²): 2.6mm²
  • Minimum Wire Size AWG: 16AWG
  • Maximum Wire Size AWG: 14AWG
  • Minimum Wire Size (AWG): 16AWG
  • Maximum Wire Size (AWG): 14AWG
  • Stud Size: M3.5
  • Colour: Blue
  • Contact Plating: Tin
  • Contact Material: Copper
  • Overall Length: 19.43mm
